General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X670
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
Lighting
ARGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 22110/2280 PCIe 5.0 x4
M 2280/2260 PCIe 4.0 x4
M 2280/2260 PCIe 4.0 x4
M 2280/2260 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8125BG 2.5 Gb/s
WiFi
Wifi 6E
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897 Codec
Audio Channels
7.1
Back Panel Ports
1x Flash BIOS button
1x DisplayPort
1x HDMI™ port
3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU & X670 chipset)
4x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU & X670 chipset)
4x USB 2.0 Type-A ports (From X670 chipset)
1x 2.5 Gbps LAN (RJ45) port
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From X670 chipset)
2x Wi-Fi antenna connectors
3x audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
GAMING
Variant
X670E PLUS WIFI
Release Year
2024
Manufacturer Color
Black / Silver
UPC
824142345986
EAN
0824142345986
4711377170345
Part Numbers
X670E GAMING PLUS WIFI
7E16-003R
911-7E16-003
X670EGAMPLUSWIFI
7E16-001R
911-7E16-002
BuildCores ID
ybdupg1l8
Motherboard
3D

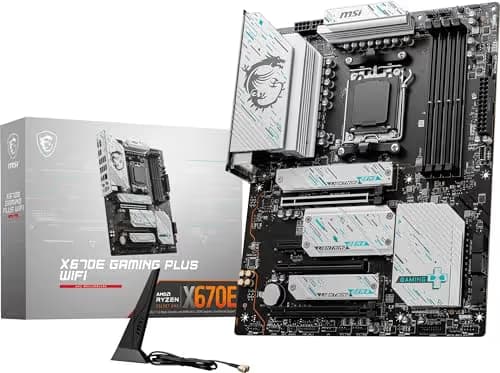

MSI X670E GAMING PLUS WIFI AM5 DDR5 ATX
SocketAM5
Form FactorATX
ChipsetAMD X670
