General Specifications
Socket
LGA 1851
Form Factor
ATX
Chipset
Intel Z890
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GOLD
Lighting
ARGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2280 PCIe 5.0 x4
M 2260/2280 PCIe 4.0 x4
M 2230/2242/2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek Dragon RTL8125BG 2.5 Gb/s
Realtek RTL8126 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
2
Case Fan Headers
4
Pump Headers
2
CPU Optional Fan Headers
0
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
3
Thunderbolt Headers
0
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x Thunderbolt 4 Type-C Ports
4 x USB 3.2 Gen2 Type-A Ports
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack
Display Outputs
Connector: hdmi
Count: 1
Version Label: 2.1
Video Signal: hdmi
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 3840 × 2160 px
Refresh Rate: 120
Claim: maximum_at_resolution
Connector: usb_c
Count: 2
Version Label: Thunderbolt 4
Video Signal: displayport
Transport: thunderbolt
Graphics Route: integrated
Mode Claims: Resolution: 7680 × 4320 px
Refresh Rate: 60
Claim: maximum_at_resolution
Product Information
Manufacturer
ASRock
Series
Taichi
Variant
Z890
Release Year
2024
Manufacturer Color
Black
UPC
4710483949685
EAN
4710483949685
Part Numbers
Z890 Taichi
90-MXBPR0-A0UAYZ
Z890 TAICHI
BuildCores ID
y2q84icf4
Motherboard
3D
Modular

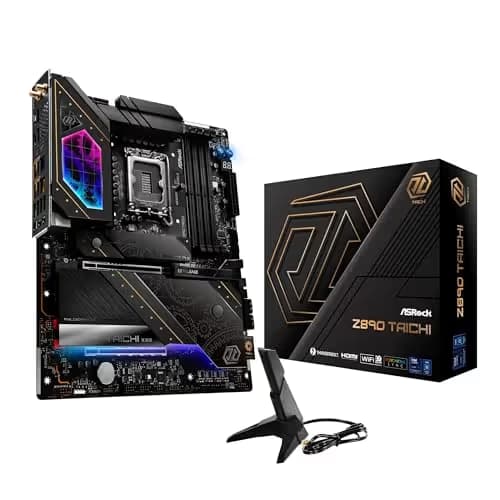

ASRock Z890 Taichi
SocketLGA 1851
Form FactorATX
ChipsetIntel Z890
