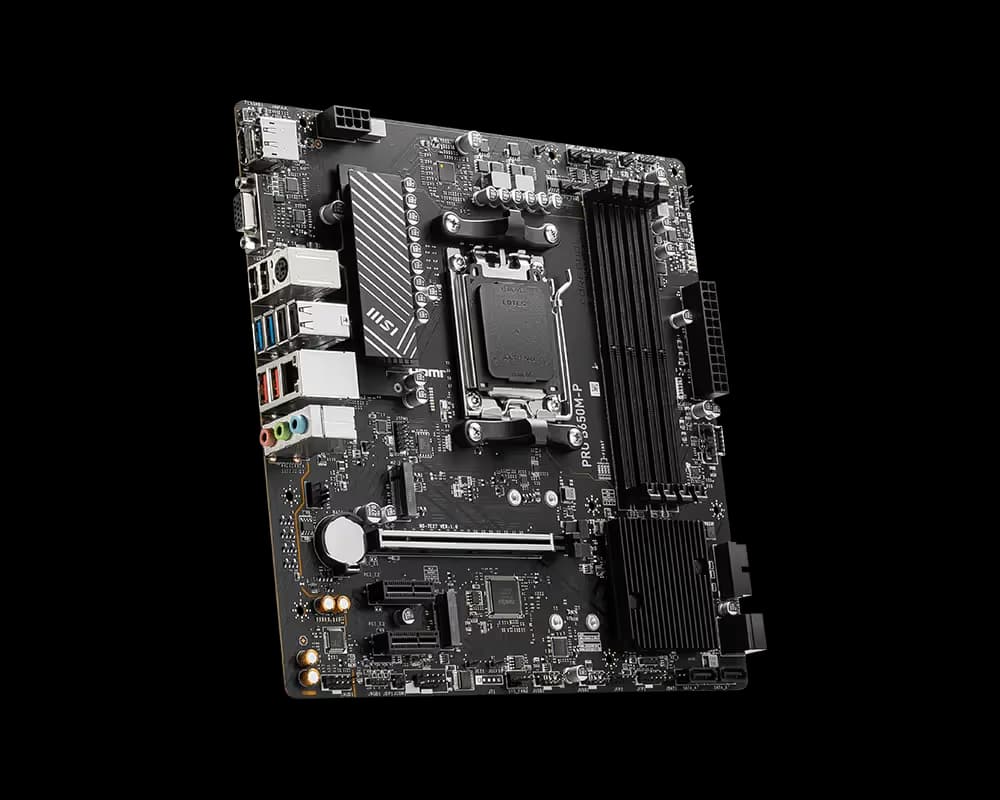

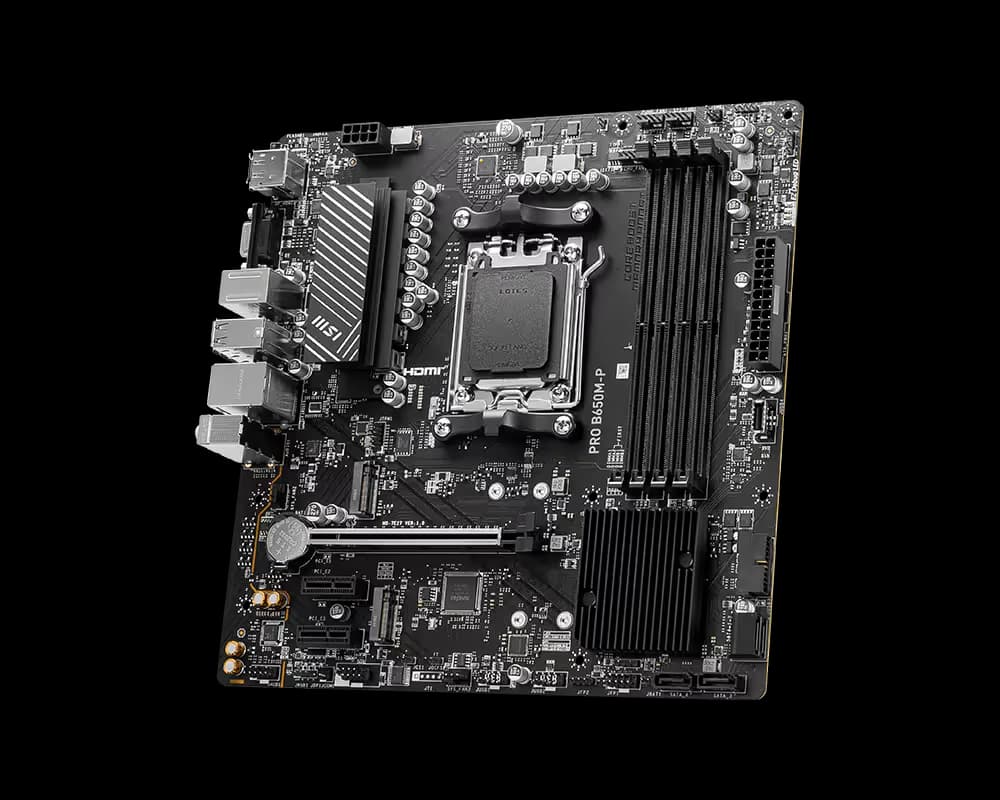

MSI PRO B650M-P image
MSI PRO B650M-P image
MSI PRO B650M-P image
MSI PRO B650M-P image

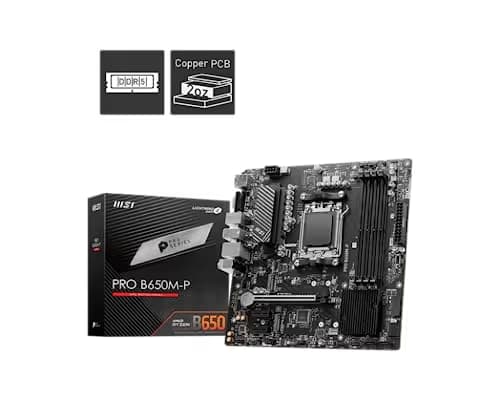

MSI PRO B650M-P main image
General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK GREY
Lighting
Unknown
PCIe Slots
1 x PCIe 4.0 x16 2 x PCIe 3.0 x1
M.2 Slots
M 2280/2260 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 8125BG 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Unknown
RAID Support
Yes
Back-Connect Connectors
Unknown
BIOS Flashback
Yes
Clear CMOS Button
Unknown
Audio Chipset
Realtek ALC897
Audio Channels
7.1

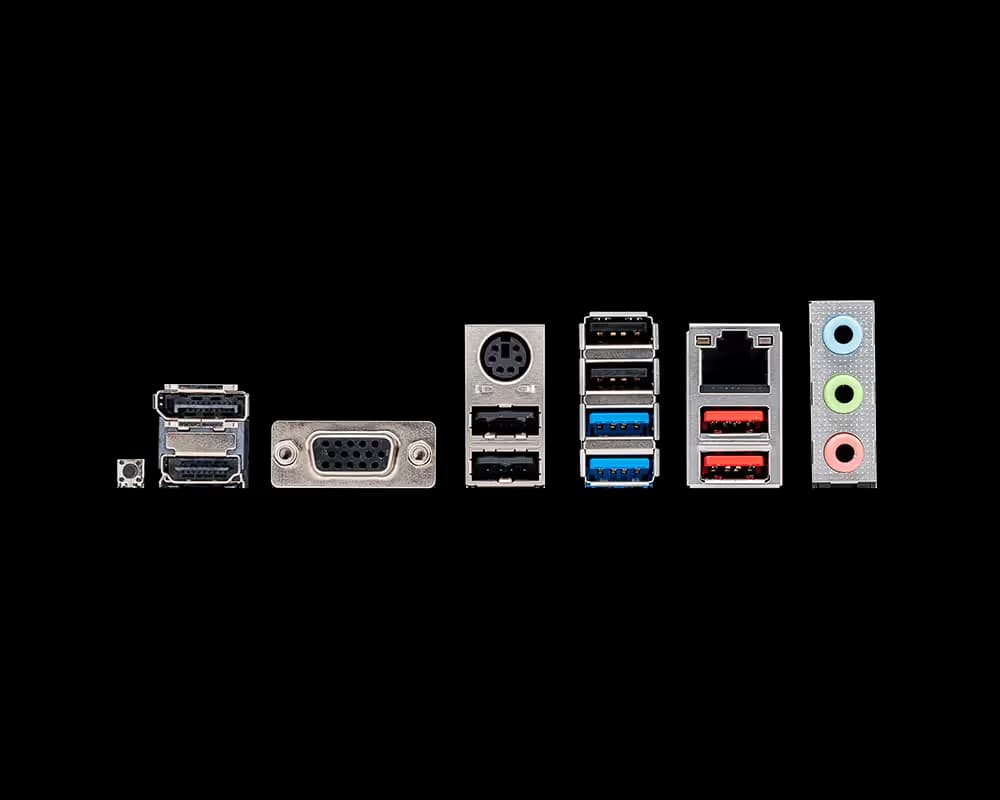

Back Panel Ports
1 x Flash BIOS button 1 x DisplayPort 1.4 1 x HDMI 2.1 port 1 x VGA port 2 x USB 3.2 Gen 2 10Gbps Type-A ports 2 x USB 3.2 Gen 1 5Gbps Type-A ports 4 x USB 2.0 Type-A ports 1 x PS/2 keyboard/mouse combo port 1 x 2.5Gbps LAN (RJ45) jack 3 x Audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
PRO
Variant
B650M-P
Release Year
2023
Manufacturer Color
Black
UPC
824142324837
EAN
0824142324837
Part Numbers
PRO B650M-P PROB650M-P
BuildCores ID
xqnsxf7f5
See an issue?Report an issue on OpenDB
