General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
RED
Lighting
None
PCIe Slots
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280/22110 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8125B 2.5 Gb/s
WiFi
Wifi 6 Bluetooth 5.1
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
0
CPU Optional Fan Headers
1
ARGB 5V Headers
1
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

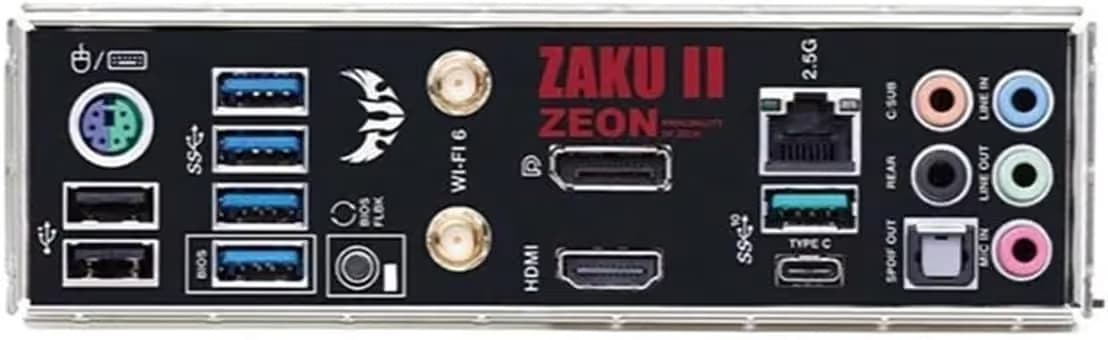

Back Panel Ports
2 x USB 3.2 Gen 2 ports
4 x USB 3.2 Gen 1 ports
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek RTL8125B 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
TUF GAMING
Variant
B550M-ZAKU (WI-FI)
Release Year
2021
Manufacturer Color
Black/Red
UPC
772286173111
EAN
0772286173111
Part Numbers
TUF GAMING B550M-ZAKU (WI-FI)
90MB15P0-M0AAY0
BuildCores ID
wp48zzjhc
Motherboard
ASUS TUF GAMING B550M-ZAKU (WI-FI)
SocketAM4
Form FactorMicro ATX
ChipsetAMD B550
