General Specifications
Socket
LGA 1151
Form Factor
Micro ATX
Chipset
Intel H370
Weight
Unknown
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
M.2 Slots
M 2260/2280 PCIe Gen3x4 & SATA3
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 8111H 1 Gb/s
WiFi
None
USB 2.0
1
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
1
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
0
RGB 12V Headers
0
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

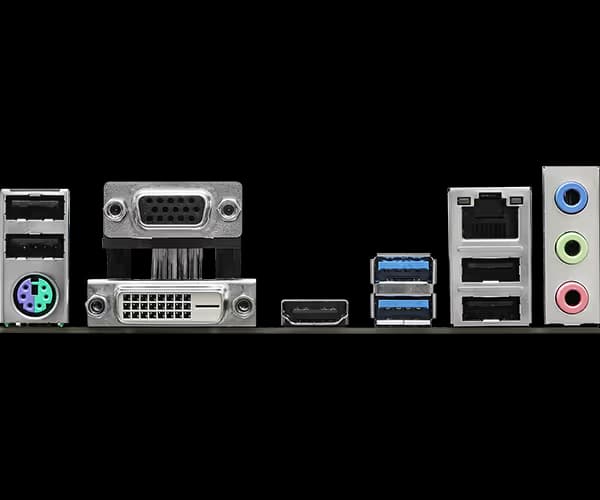

Back Panel Ports
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
4 x USB 2.0 Ports
2 x USB 3.2 Gen1 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Display Outputs
Unknown
Product Information
Manufacturer
ASRock
Series
Unknown
Variant
H370M-HDV/M.2
Release Year
2018
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
H370M-HDV/M.2
BuildCores ID
w34jtbvtk
Motherboard
3D

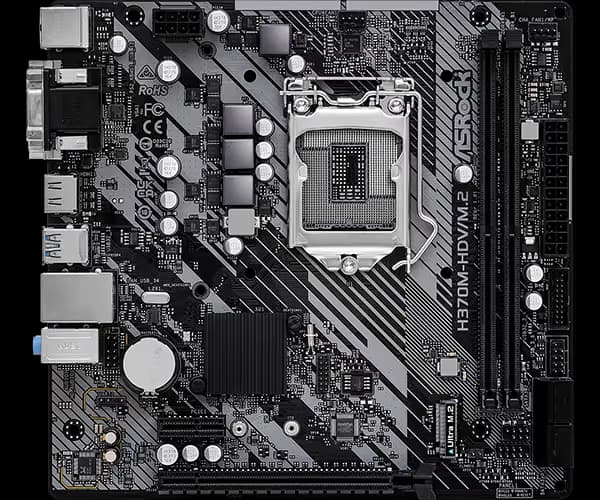

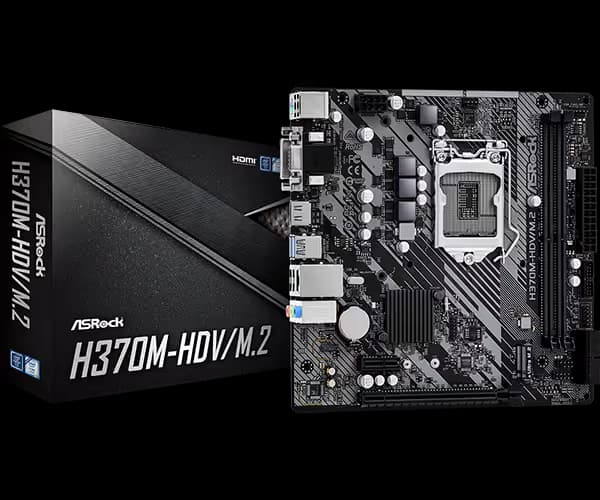

ASROCK H370M-HDV/M.2 LGA1151 DDR4 MICRO-ATX
