MSI PRO B860-P WIFI LGA1851 DDR5 ATX image

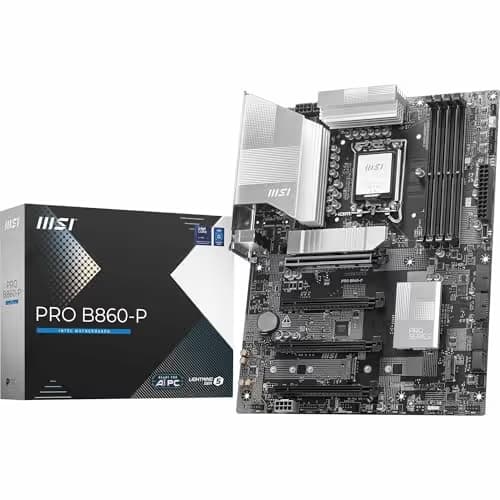

MSI PRO B860-P WIFI LGA1851 DDR5 ATX main image

General Specifications

Socket

LGA 1851

Form Factor

ATX

Chipset

Intel B860

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

Lighting

RGB ARGB

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x1 1 x PCIe 4.0 x4

M.2 Slots

M 2280/2260 PCIe 5.0 x4 M 2280/2260/2242 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126 5 Gb/s

WiFi

Wifi 7

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

1x DisplayPort 1x HDMI™ port 1x Thunderbolt™ 4 USB-C port (From CPU) 4x USB 2.0 Type-A ports (From B860 chipset) 2x USB 5Gbps Type-A ports (From B860 chipset) 2x USB 10Gbps Type-A ports (From CPU) 1x 5Gbps LAN (RJ45) port 1x Clear CMOS Button 2x Wi-Fi antenna connectors (For PRO B860-P WIFI) 3x Audio jacks

Display Outputs

Unknown

Product Information

Manufacturer

MSI

Series

PRO

Variant

B860-P WIFI

Release Year

2025

Manufacturer Color

Black / Silver

UPC

824142392959

EAN

0824142392959

Part Numbers

PRO B860-P WIFI 7E41-001R B860-P WIFI

BuildCores ID

tpy73godd

See an issue?Report an issue on OpenDB

Motherboard

MSI PRO B860-P WIFI LGA1851 DDR5 ATX

SocketLGA 1851

Form FactorATX

ChipsetIntel B860
