General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4 / SATA
M 2242/2260/2280 PCIe 4.0 x4 / SATA
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
Wi-Fi 7
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
1
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC4080 Codec
Audio Channels
7.1
Back Panel Ports
1 x DisplayPort
1 x HDMI port
1 x Flash BIOS button
2 x USB 2.0 Type-A ports (From Hub GL850G)
2 x USB 3.2 Gen1 5Gbps Type-A ports (From Z790 chipset)
3 x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
1 x 2.5Gbps LAN (RJ45) port
2 x Wi-Fi antenna connectors
5 x Audio jacks
1 x Optical S/PDIF Out connector
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
PRO
Variant
Z790-A MAX WIFI
Release Year
2023
Manufacturer Color
Black / Silver
UPC
824142337301
EAN
0824142337301
4711377139939
Part Numbers
PRO Z790-A MAX WIFI
BuildCores ID
soamsakin
Motherboard
3D

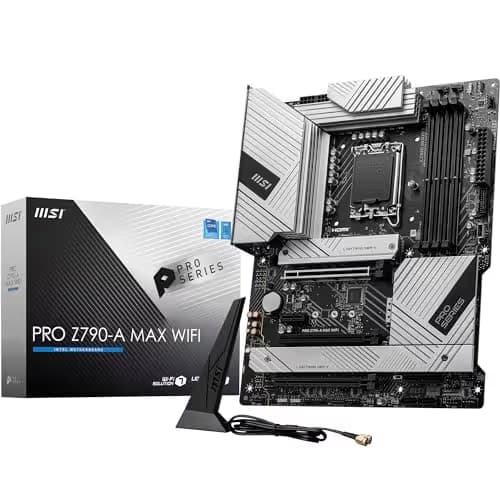

MSI Z790 PRO-A MAX WIFI LGA1700 DDR5 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z790
