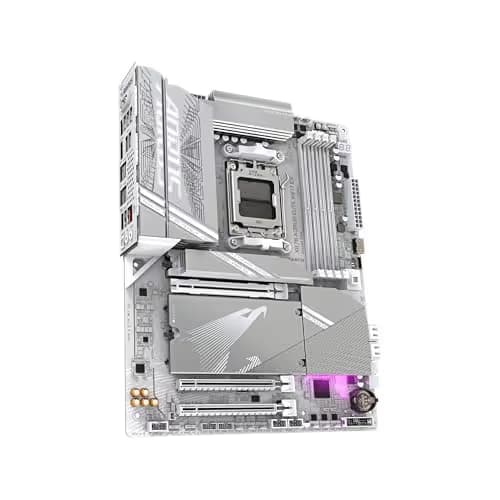

Gigabyte X870 AORUS ELITE WIFI7 ICE image

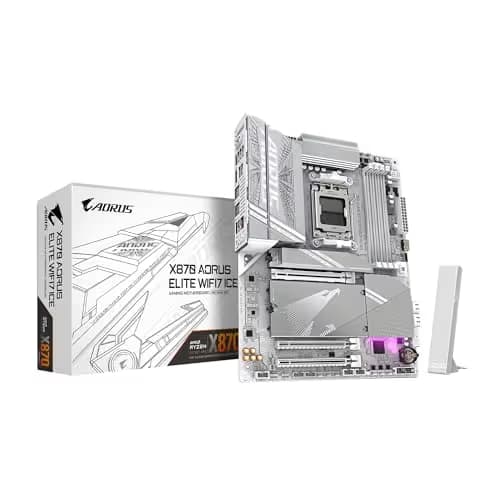

Gigabyte X870 AORUS ELITE WIFI7 ICE main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE GREY

Lighting

ARGB RGB

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x2

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 22110/2280 PCIe 5.0 x4 M 22110/2280 PCIe 5.0 x4 M 22110/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 7

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC1220-VB Codec

Audio Channels

7.1

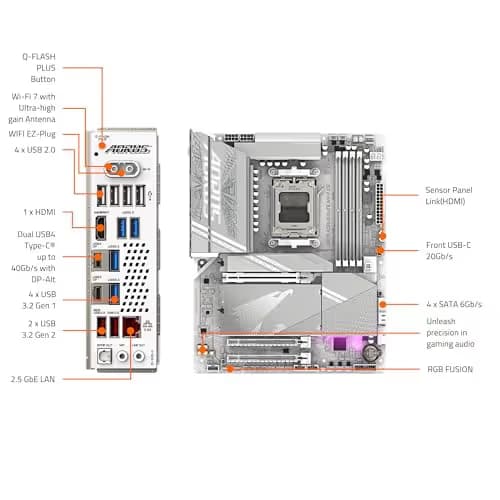

Back Panel Ports

1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Display Outputs

Unknown

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

X870 ELITE WIFI7 ICE

Release Year

2024

Manufacturer Color

White/Grey

UPC

889523045176

EAN

0889523045176 4719331864682

Part Numbers

X870 AORUS ELITE WIFI7 ICE X870 A ELITE WF7 ICE X870E AORUS ELITE WIFI7 ICE X870 A ELITE WIFI7 ICE

BuildCores ID

p0a3gnj45

See an issue?Report an issue on OpenDB
