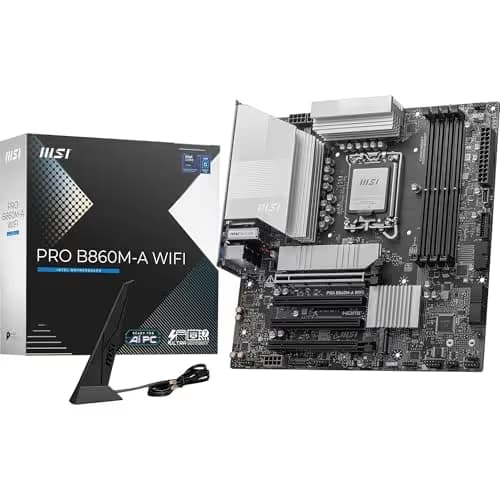

MSI PRO B860M-A WIFI LGA1851 DDR5 Micro-ATX image

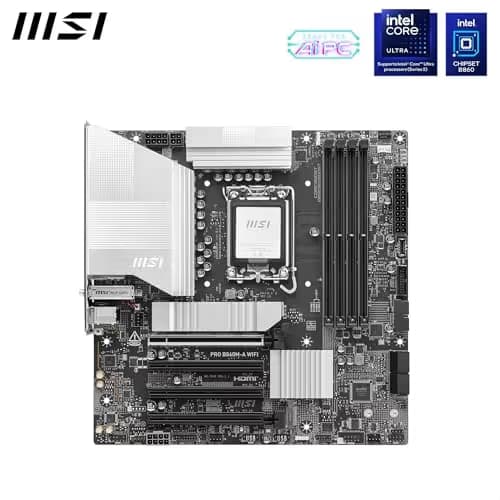

MSI PRO B860M-A WIFI LGA1851 DDR5 Micro-ATX main image

General Specifications

Socket

LGA 1851

Form Factor

Micro ATX

Chipset

Intel B860

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

Lighting

RGB ARGB

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x1 1 x PCIe 4.0 x4

M.2 Slots

M 2280/2260/2242 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4 M 2280 PCIe 4.0 x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

1 x DisplayPort 1.4 1 x HDMI port 2.1 1 x Thunderbolt 4 USB-C port (Supports DisplayPort) 1 x USB 10Gbps Type-A port 1 x USB 5Gbps Type-C port 2 x USB 5Gbps Type-A ports 2 x USB 2.0 Type-A ports 1 x 5Gbps LAN (RJ45) port 2 x Wi-Fi antenna connectors 3 x Audio jacks 1 x Clear CMOS Button 1 x PS/2 port

Display Outputs

Unknown

Product Information

Manufacturer

MSI

Series

PRO

Variant

B860M-A WIFI

Release Year

2025

Manufacturer Color

Black / Silver

UPC

824142392942

EAN

0824142392942 4711377286565

Part Numbers

PRO B860M-A WIFI 601-7E42-01S 7E42-002R B860M-A PRO B860M-A WiFi B860M-A WIFI

BuildCores ID

mdp94fhta

See an issue?Report an issue on OpenDB

Motherboard

MSI PRO B860M-A WIFI LGA1851 DDR5 Micro-ATX

SocketLGA 1851

Form FactorMicro ATX

ChipsetIntel B860
