General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD A520
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
Lighting
RGB
PCIe Slots
1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 3.0 x4 & SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
L8200A 1 Gb/s
WiFi
None
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
0
CPU Optional Fan Headers
0
ARGB 5V Headers
0
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek ALC 887
Audio Channels
7.1

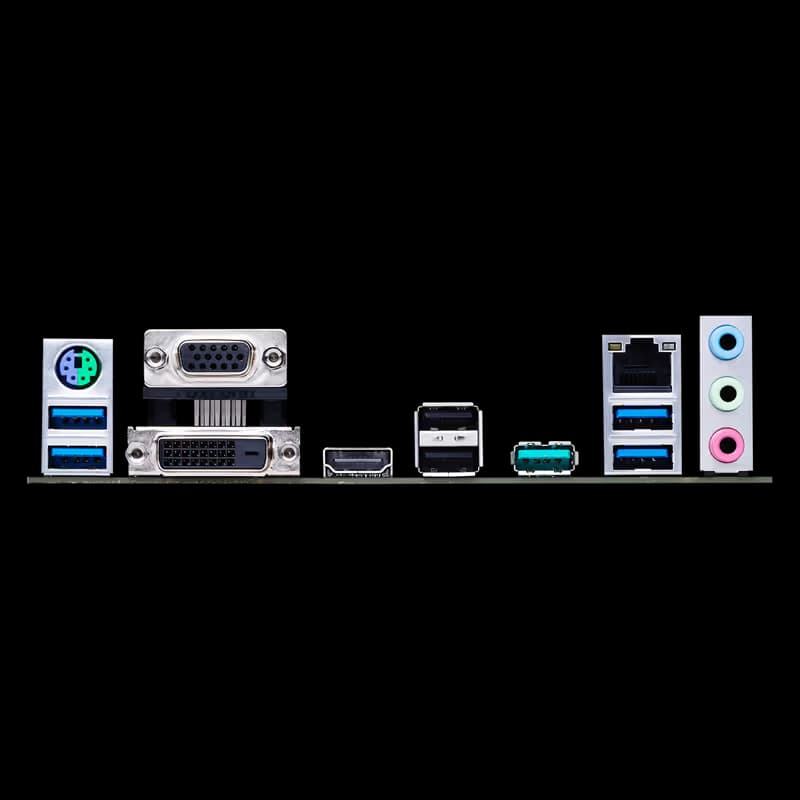

Back Panel Ports
1 x PS/2 Keyboard/Mouse combo port 1 x DVI-D port 1 x D-Sub port 1 x HDMI port 1 x USB 3.2 Gen 2 port (Type-A) 4 x USB 3.2 Gen 1 ports (Type-A) 2 x USB 2.0 ports (Type-A) 1 x Realtek L8200A 1Gb Ethernet port 3 x Audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
TUF GAMING
Variant
A520M-PLUS
Release Year
2020
Manufacturer Color
Black
UPC
None
EAN
4718017823661
Part Numbers
TUF GAMING A520M-PLUS 90MB14Y0-M0EAY0
BuildCores ID
khc3wcqjo
