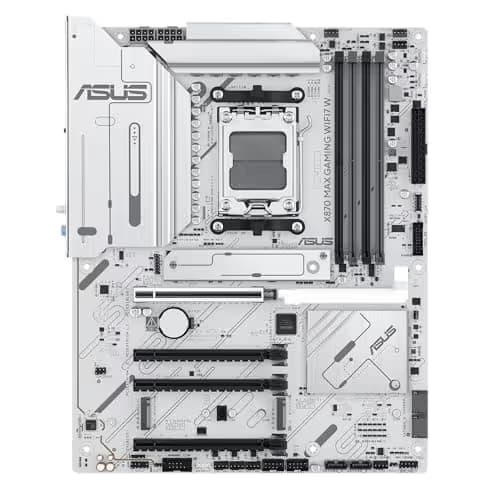

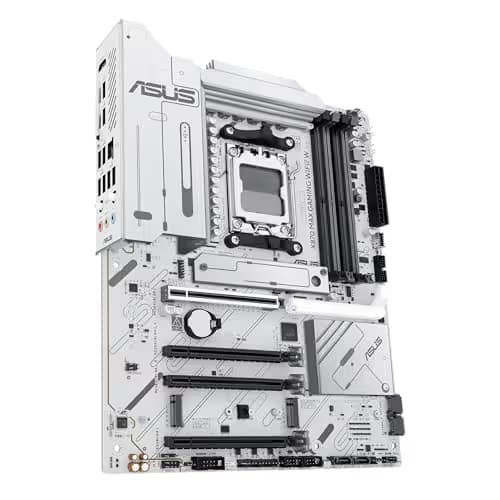

ASUS X870 MAX GAMING WIFI7 W AM5 DDR5 ATX image

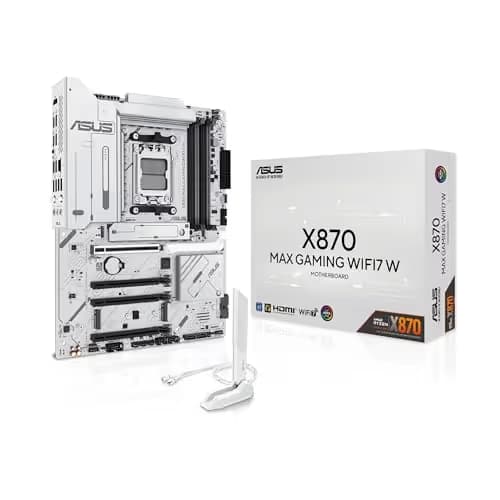

ASUS X870 MAX GAMING WIFI7 W AM5 DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE

Lighting

ARGB

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x1 1 x PCIe 3.0 x1

M.2 Slots

M 2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 7

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

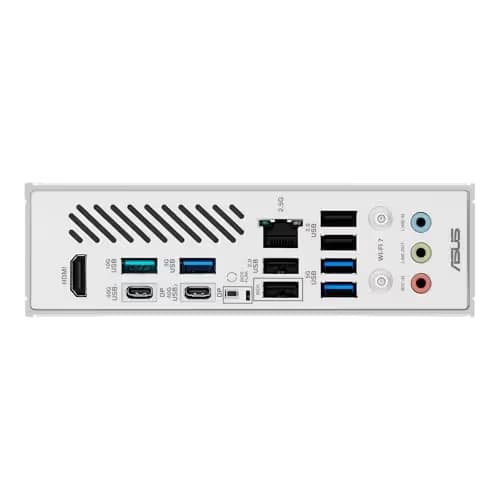

Back Panel Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button

Display Outputs

Unknown

Product Information

Manufacturer

ASUS

Series

PRIME

Variant

X870 MAX GAMING WIFI7

Release Year

2025

Manufacturer Color

White

UPC

199291007857

EAN

4711636007856 0199291007857

Part Numbers

X870 MAX GAMING WIFI7 W 90MB1LZ0-M0EAY0 90MB1LZ0-MVAAY0

BuildCores ID

j5kv5fa4u
