General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel B760
Weight
Unknown
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GOLD
GREY
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 3.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5Gb Ethernet 2.5 Gb/s
Intel 1Gb Ethernet 1 Gb/s
WiFi
Wifi 6 Bluetooth 5.2
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

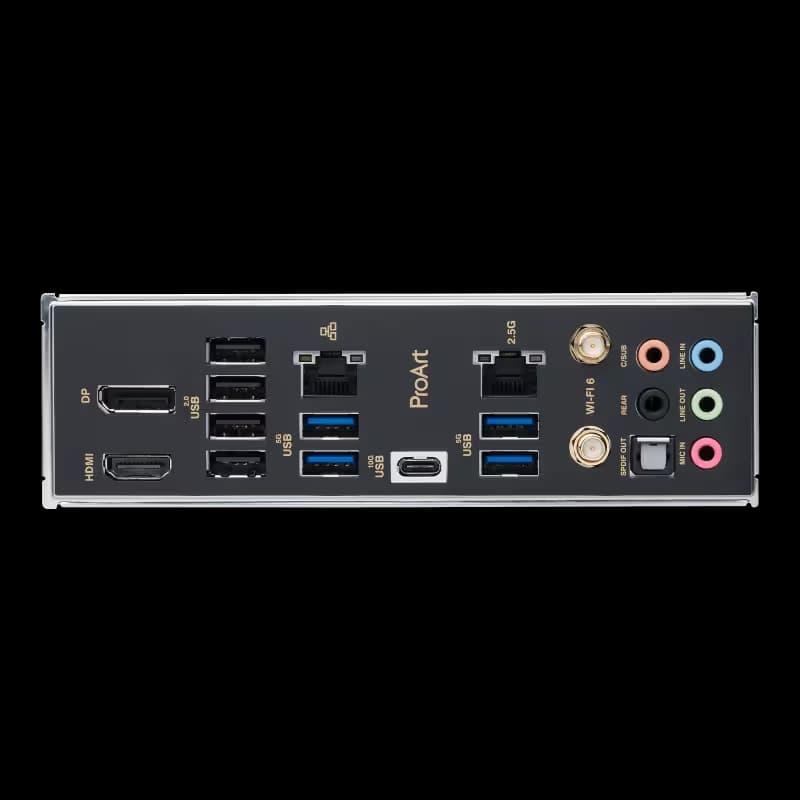

Back Panel Ports
1 x USB 3.2 Gen 2 port (1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
1 x Intel 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
ProArt
Variant
B760-CREATOR WIFI
Release Year
Unknown
Manufacturer Color
Black
UPC
192876914571
EAN
0192876914571
Part Numbers
90MB1FY0-M0EAY0
BuildCores ID
h5968itcy
Motherboard
ASUS ProArt B760-CREATOR WIFI
SocketLGA 1700
Form FactorATX
ChipsetIntel B760
