General Specifications

Socket

LGA 1851

Form Factor

ATX

Chipset

Intel Z890

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE GREY BLACK

Lighting

None

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/ 2260/ 2280 PCIe 5.0 x4 M 2242/ 2260/ 2280 PCIe 4.0 x4 M 2242/ 2260/ 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

Realtek 8125D 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

Unknown

USB 3.2 Gen 2x2

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

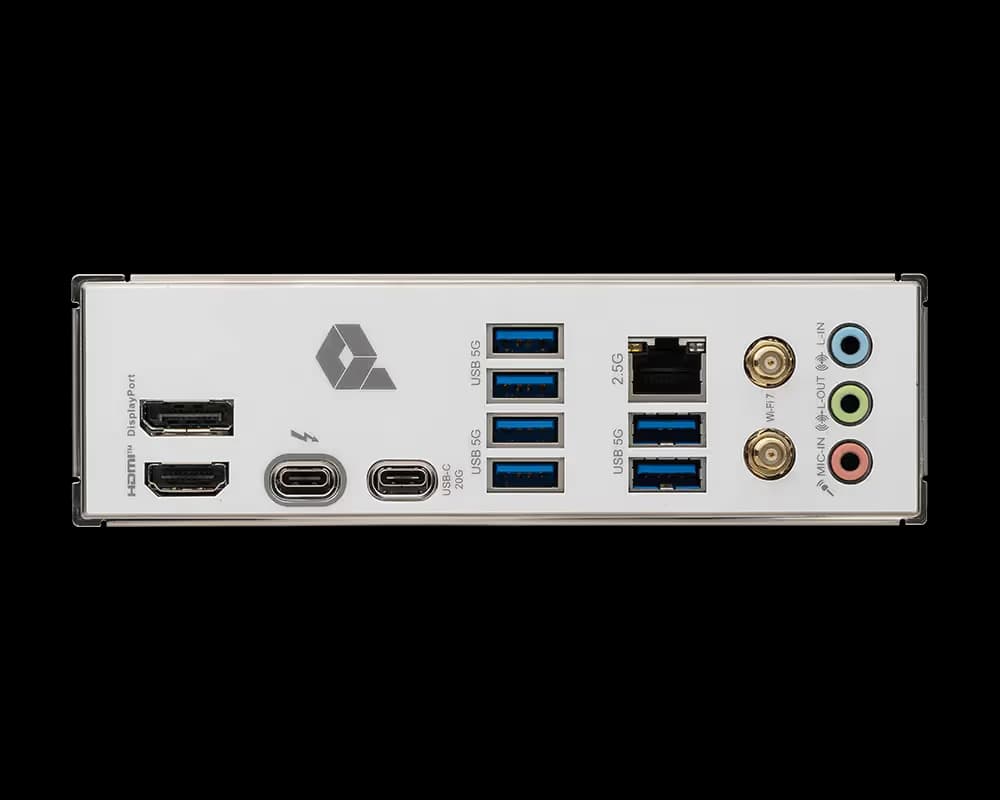

Back Panel Ports

1 x DisplayPort 1 x HDMI port 1 x Thunderbolt 4 USB-C port 1 x USB 20Gbps Type-C port 6 x USB 5Gbps Type-A ports 1 x 2.5G LAN (RJ45) port 2 x Wi-Fi antenna connectors 3 x Audio jacks

Display Outputs

Unknown

Product Information

Manufacturer

MSI

Series

PRO

Variant

Z890-S WIFI WHITE

Release Year

2024

Manufacturer Color

White

UPC

824142390306

EAN

0824142390306

Part Numbers

PRO-Z890-S-WIFI-WHITE PRO Z890-S WIFI WHITE

BuildCores ID

fqxuy4vpi

See an issue?Report an issue on OpenDB

Motherboard

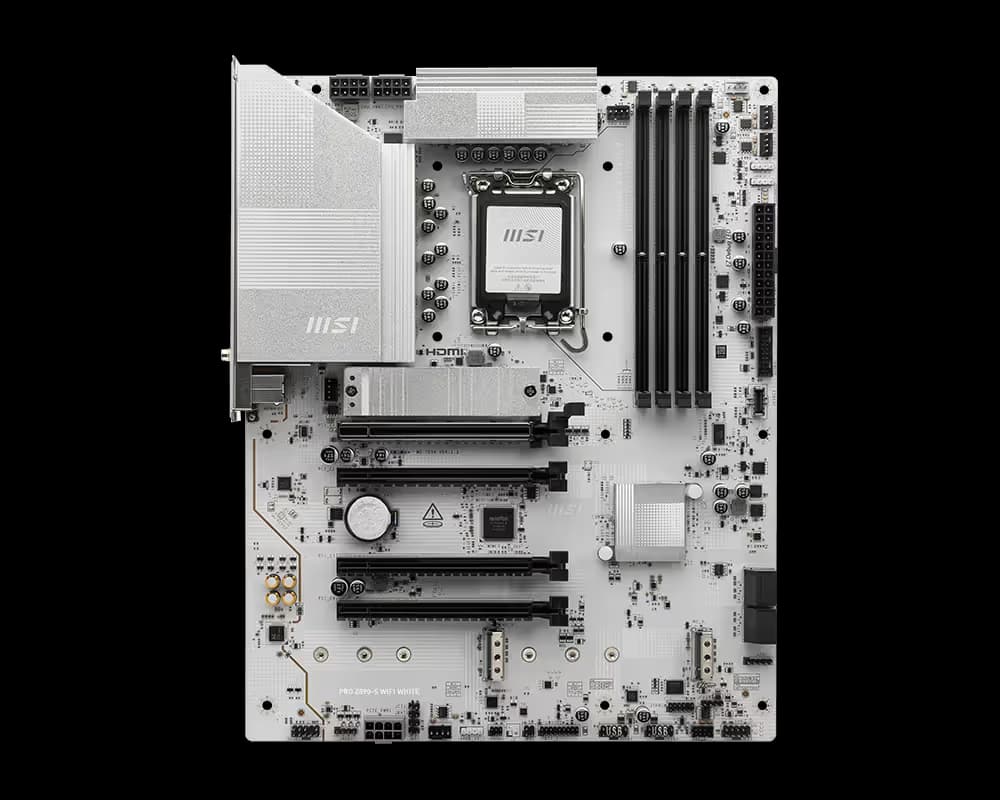

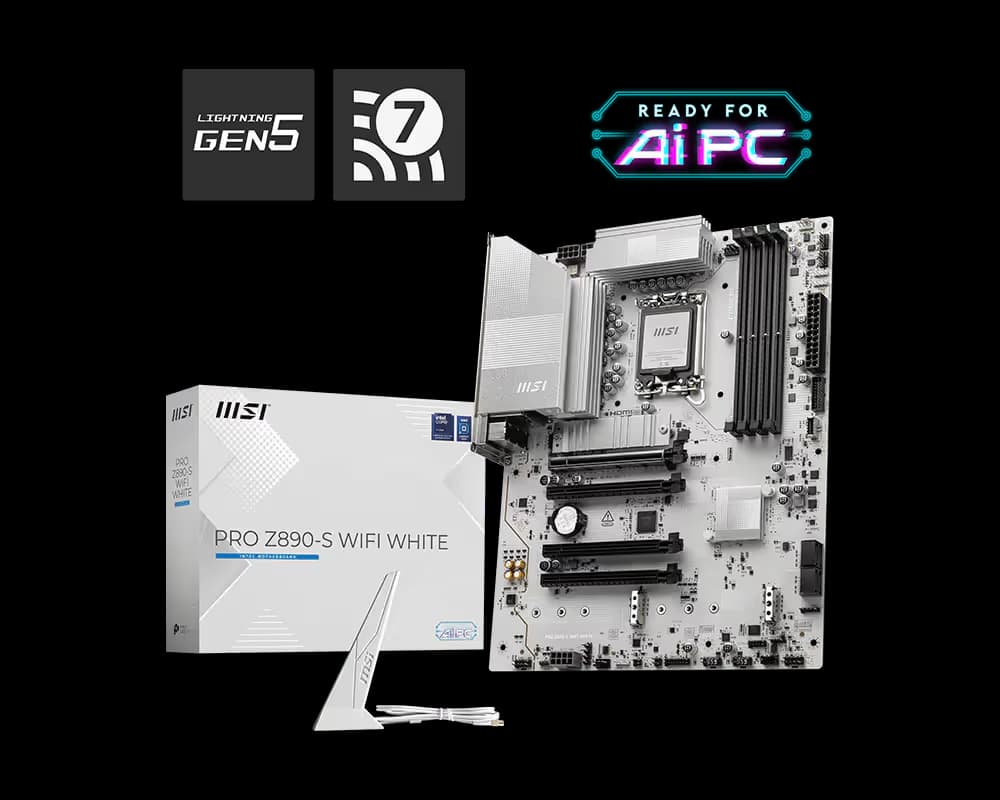

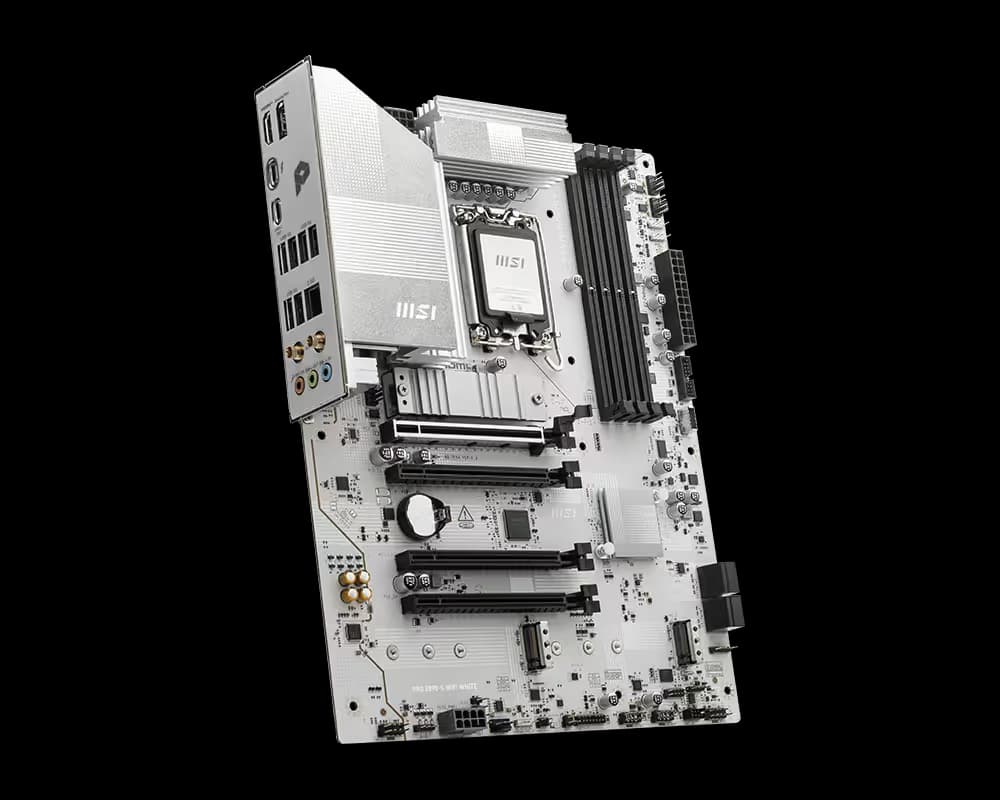

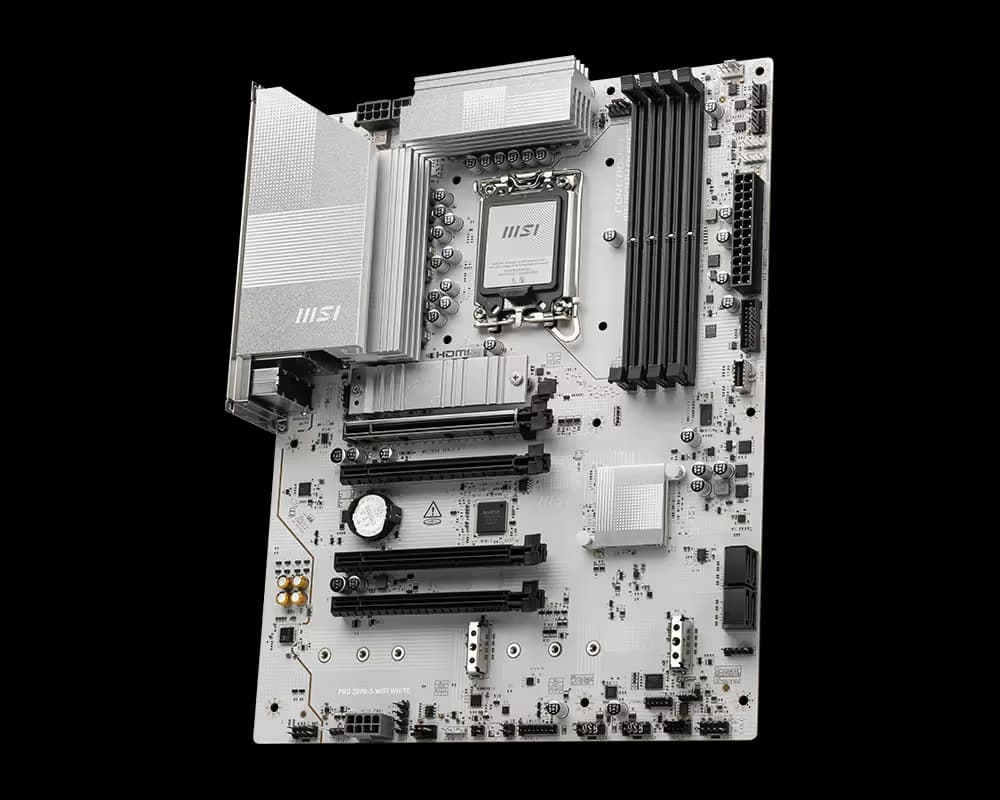

MSI PRO Z890-S WIFI WHITE

Name: MSI PRO Z890-S WIFI WHITE
Brand: MSI
SKU: fqxuy4vpi

SocketLGA 1851

Form FactorATX

ChipsetIntel Z890

Best Price

$199.99

via

	—	$199.99

	FREE s/h	$199.99

	FREE s/h	$199.99

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$199.99 via Amazon
	FREE s/h	—	In stock	$199.99 via B&H Photo
	FREE s/h	—	In stock	$199.99 via MSI

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$199.99 via Amazon
	FREE s/h	—	In stock	$199.99 via B&H Photo
	FREE s/h	—	In stock	$199.99 via MSI

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.
