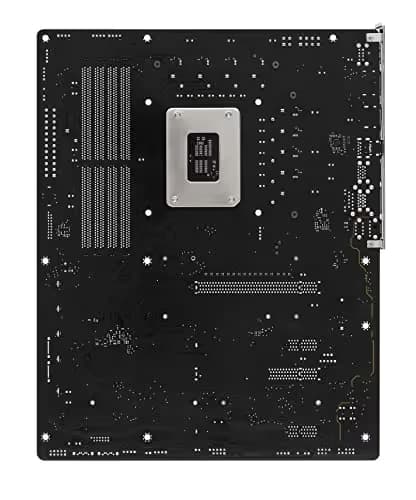

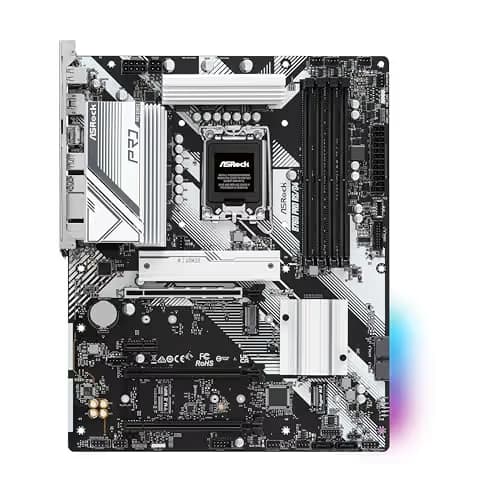

ASROCK B760 PRO RS/D4 LGA1700 DDR4 ATX image

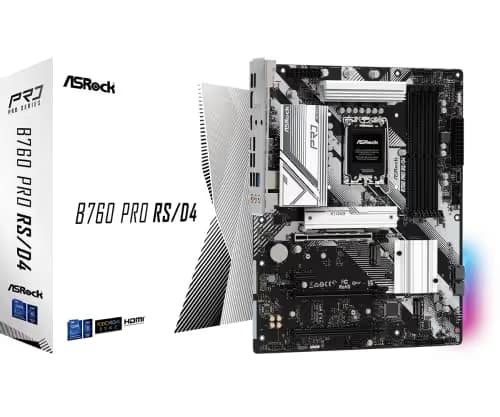

ASROCK B760 PRO RS/D4 LGA1700 DDR4 ATX main image

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel B760

Weight

Unknown

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

Lighting

RGB ARGB

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x2 M 2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Dragon RTL8125BG 2.5 Gb/s

WiFi

None

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

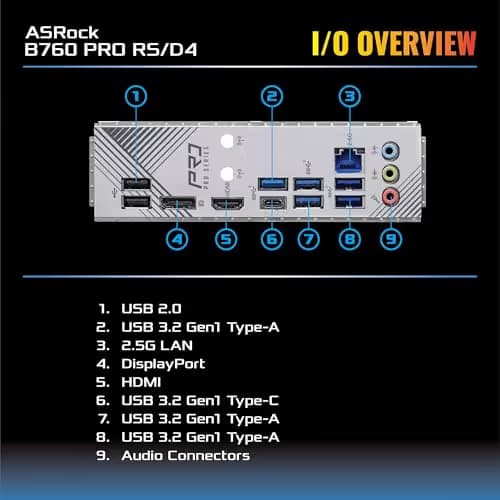

Back Panel Ports

2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 5 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone

Display Outputs

Unknown

Product Information

Manufacturer

ASRock

Series

Pro

Variant

B760 RS/D4

Release Year

2023

Manufacturer Color

Black / Silver

UPC

None

EAN

4710483942075

Part Numbers

90-MXBL80-A0UAYZ B760 PRO RS/D4

BuildCores ID

ero1zcmx9

See an issue?Report an issue on OpenDB
