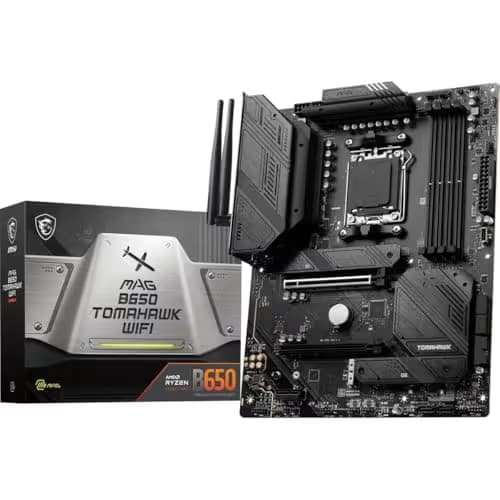

MSI MAG B650 TOMAHAWK WIFI AM5 DDR5 ATX image

MSI MAG B650 TOMAHAWK WIFI AM5 DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

ARGB

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x2 1 x PCIe 3.0 x1

M.2 Slots

M 2280/22110 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125B 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

Back Panel Ports

DisplayPort 1.4 2.5G LAN Port USB 2.0 Port USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth Antenna HD Audio Connectors Flash BIOS Button HDMI™ 2.1 Port USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT

Display Outputs

Unknown

Product Information

Manufacturer

MSI

Series

MAG

Variant

B650 TOMAHAWK WIFI

Release Year

2022

Manufacturer Color

Black

UPC

824142301036

EAN

0824142301036 4711377010153

Part Numbers

MAG B650 TOMAHAWK WIFI 7D75-001R B650TOMAHAWKWIFI 911-7D75-001 MS-B650TOMAHAWKWIFI

BuildCores ID

e2ypscb7u

See an issue?Report an issue on OpenDB

Motherboard

MSI MAG B650 TOMAHAWK WIFI AM5 DDR5 ATX

Name: MSI MAG B650 TOMAHAWK WIFI AM5 DDR5 ATX
Brand: MSI
SKU: e2ypscb7u

SocketAM5

Form FactorATX

ChipsetAMD B650

Best Price

$151.00

via

	—	$151.00

	—	$154.99

	FREE s/h	$154.99

	—	$175.99

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$151.00 via Walmart
	—	—	In stock	$154.99 via Amazon
	FREE s/h	—	In stock	$154.99 via MSI
	—	—	In stock	$175.99 via Best Buy

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$151.00 via Walmart
	—	—	In stock	$154.99 via Amazon
	FREE s/h	—	In stock	$154.99 via MSI
	—	—	In stock	$175.99 via Best Buy

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
