Setup Builder

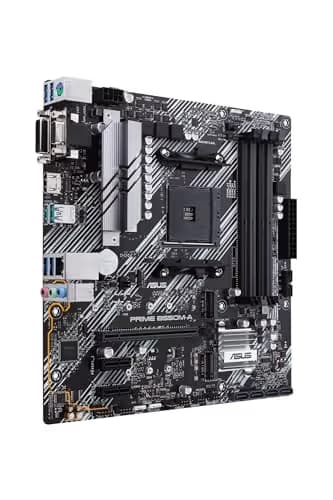

ASUS PRIME B550M-A AM4 DDR4 mATX image
ASUS PRIME B550M-A AM4 DDR4 mATX image
ASUS PRIME B550M-A AM4 DDR4 mATX image
ASUS PRIME B550M-A AM4 DDR4 mATX image
ASUS PRIME B550M-A AM4 DDR4 mATX image
ASUS PRIME B550M-A AM4 DDR4 mATX image

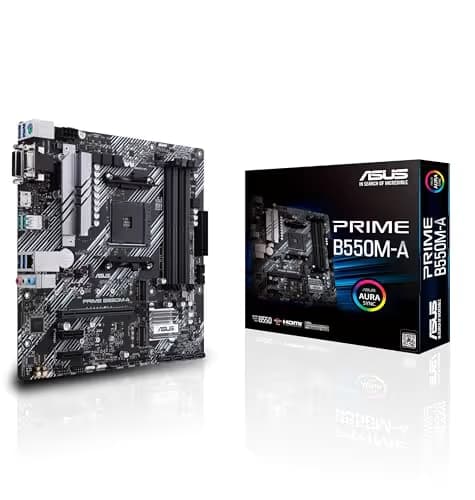

ASUS PRIME B550M-A AM4 DDR4 mATX main image
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK WHITE
Lighting
ARGB RGB
PCIe Slots
1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0/3.0 x4 and SATA M 2242/2260/2280 PCIe 3.0 x4 and SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8111H 1 Gb/s
WiFi
None
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
0
CPU Optional Fan Headers
1
ARGB 5V Headers
1
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek ALC887/8977
Audio Channels
7.1
Back Panel Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x Realtek RTL8111H 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
PRIME
Variant
B550M-A
Release Year
2020
Manufacturer Color
Black / Silver
UPC
192876755525
EAN
0192876755525 4718017755528
Part Numbers
None
BuildCores ID
da75vaz4v
See an issue?Report an issue on OpenDB
