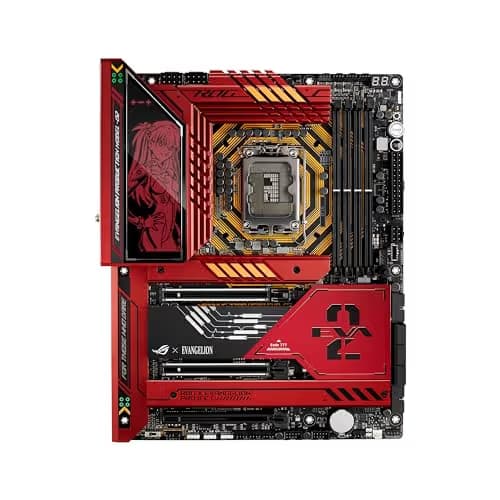

ASUS Z790 ROG MAXIMUS HERO EVA-02 EDITION LGA1700 DDR5 ATX image

ASUS Z790 ROG MAXIMUS HERO EVA-02 EDITION LGA1700 DDR5 ATX main image

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Weight

Unknown

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

RED BLACK

Lighting

RGB ARGB Display

PCIe Slots

2 x PCIe 5.0 x16 1 x PCIe 4.0 x4

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 & SATA M 2242/2260/2280/22110 PCIe 5.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4082

Audio Channels

7.1

Back Panel Ports

2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10G ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5G ports (4 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Display Outputs

Unknown

Product Information

Manufacturer

ASUS

Series

ROG

Variant

MAXIMUS Z790 HERO EVA-02 EDITION

Release Year

2023

Manufacturer Color

Red

UPC

197105306035

EAN

0197105306035

Part Numbers

ROG MAXIMUS Z790 HERO EVA-02 EDITION 90MB1FL0-M0EAY0 90MB1FL0-M0AAY0

BuildCores ID

czpy7gskp

See an issue?Report an issue on OpenDB

Motherboard

ASUS Z790 ROG MAXIMUS HERO EVA-02 EDITION LGA1700 DDR5 ATX

SocketLGA 1700

Form FactorATX

ChipsetIntel Z790
