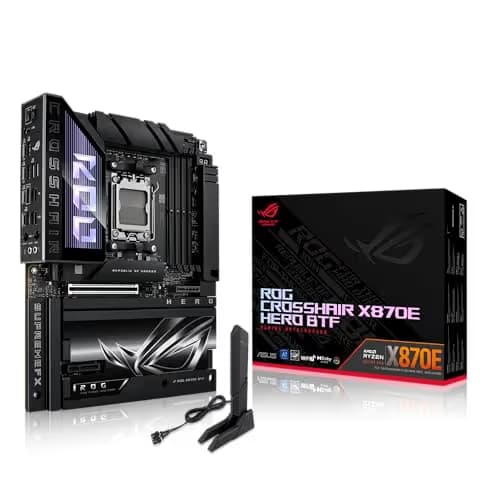

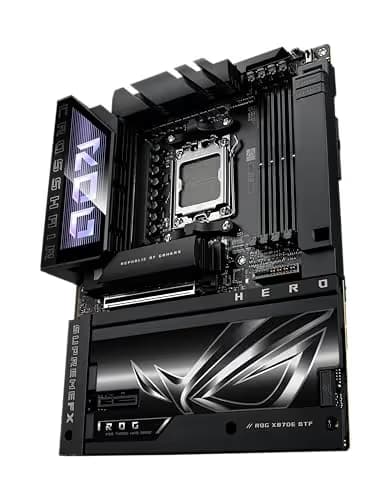

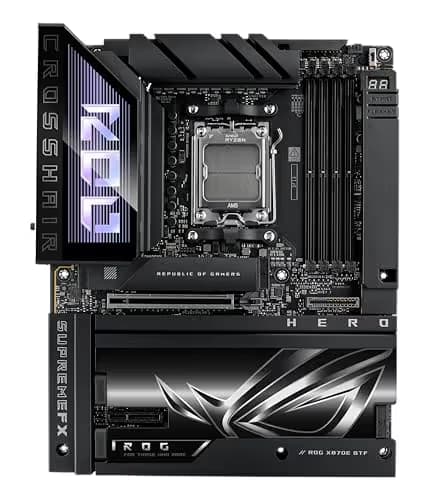

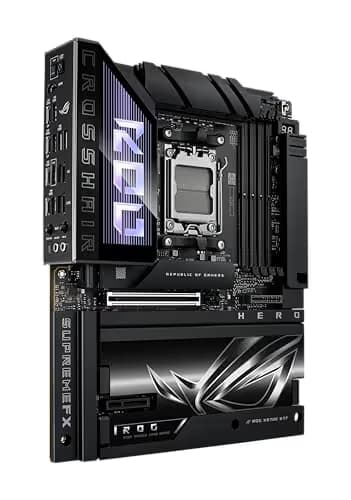

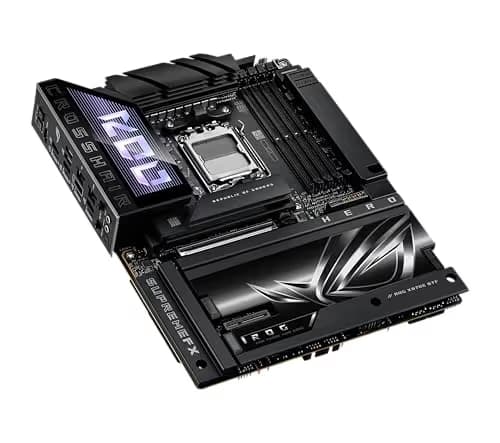

Asus ROG CROSSHAIR X870E HERO BTF WIFI DDR5 ATX image

Asus ROG CROSSHAIR X870E HERO BTF WIFI DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870E

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

ARGB

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s Realtek 5 Gb/s

WiFi

Wi-Fi 7

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

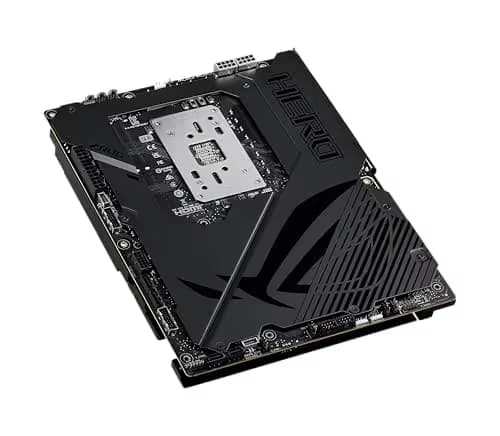

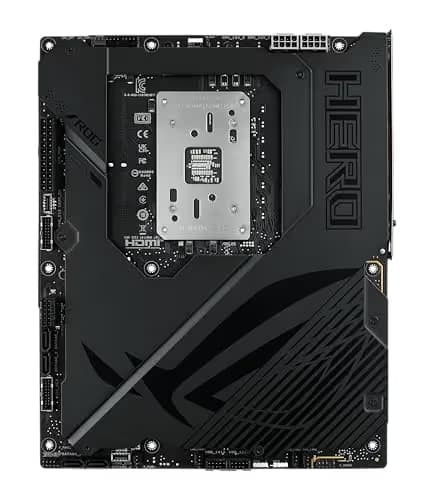

Back-Connect Connectors

Yes

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4082

Audio Channels

7.1

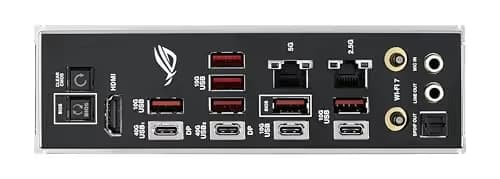

Back Panel Ports

2 x USB4® (40Gbps) ports (2 x USB Type-C®) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button

Display Outputs

Unknown

Product Information

Manufacturer

ASUS

Series

ROG

Variant

X870E CROSSHAIR HERO BTF

Release Year

2025

Manufacturer Color

Black

UPC

199291227095

EAN

0199291227095 4711636227094

Part Numbers

None

BuildCores ID

cc8r094hi

See an issue?Report an issue on OpenDB

Motherboard

Asus ROG CROSSHAIR X870E HERO BTF WIFI DDR5 ATX

Name: Asus ROG CROSSHAIR X870E HERO BTF WIFI DDR5 ATX
Brand: ASUS
SKU: cc8r094hi

SocketAM5

Form FactorATX

ChipsetAMD X870E

Best Price

$700.99

via

	—	$700.99

	FREE s/h	$700.99

	FREE s/h	$759.99

	—	$759.99

	—	$822.27

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$700.99 via Amazon
	FREE s/h	—	In stock	$700.99 via Newegg
	FREE s/h	—	In stock	$759.99 via Walmart
	—	—	In stock	$759.99 via ASUS US
	—	—	In stock	$822.27 via MemoryC

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$700.99 via Amazon
	FREE s/h	—	In stock	$700.99 via Newegg
	FREE s/h	—	In stock	$759.99 via Walmart
	—	—	In stock	$759.99 via ASUS US
	—	—	In stock	$822.27 via MemoryC

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
