General Specifications
Socket
LGA 1700
Form Factor
EATX
Chipset
Intel Z690
Weight
Unknown
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
ARGB
Display
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 5.0 x8
1 x PCIe 4.0 x4
M.2 Slots
M 2260/2280/22110 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
M 2260/2280/22110 PCIe 5.0 x4
M 2280/22110 PCIe 4.0 x4 / SATA
M 2260/2280/22110 PCIe 4.0 x4 / SATA
M 2260/2280 PCIe 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I225-V 5 Gb/s
Aquantia AQC113CS 10 Gb/s
WiFi
Wifi 6E
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
2
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
8
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
2
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
2
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA
Audio Channels
7.1
Back Panel Ports
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x 2.5Gbps LAN (Intel I225-V)
1 x 10Gbps LAN (Aquantia AQC113CS)
2 x Thunderbolt 4 USB Type-C ports
2 x Mini DisplayPort Input (for Thunderbolt pass-through)
8 x USB 3.2 Gen 2 10Gbps Type-A ports
2 x Wi-Fi Antenna connectors
5 x OFC Audio jacks
1 x Optical S/PDIF Out connector
Display Outputs
Unknown
Product Information
Manufacturer
MSI
Series
MEG
Variant
Z690 GODLIKE
Release Year
2022
Manufacturer Color
Black
UPC
824142270288
EAN
0824142270288
4719072886486
Part Numbers
MEG Z690 GODLIKE
7D26-001R
BuildCores ID
asmgx25eh
Motherboard
3D

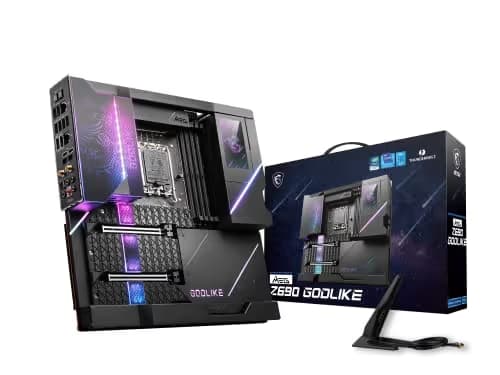

MSI Z690 MEG GODLIKE LGA1700 DDR5 EATX
SocketLGA 1700
Form FactorEATX
ChipsetIntel Z690
