General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650E
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
M 2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5Gb Ethernet 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

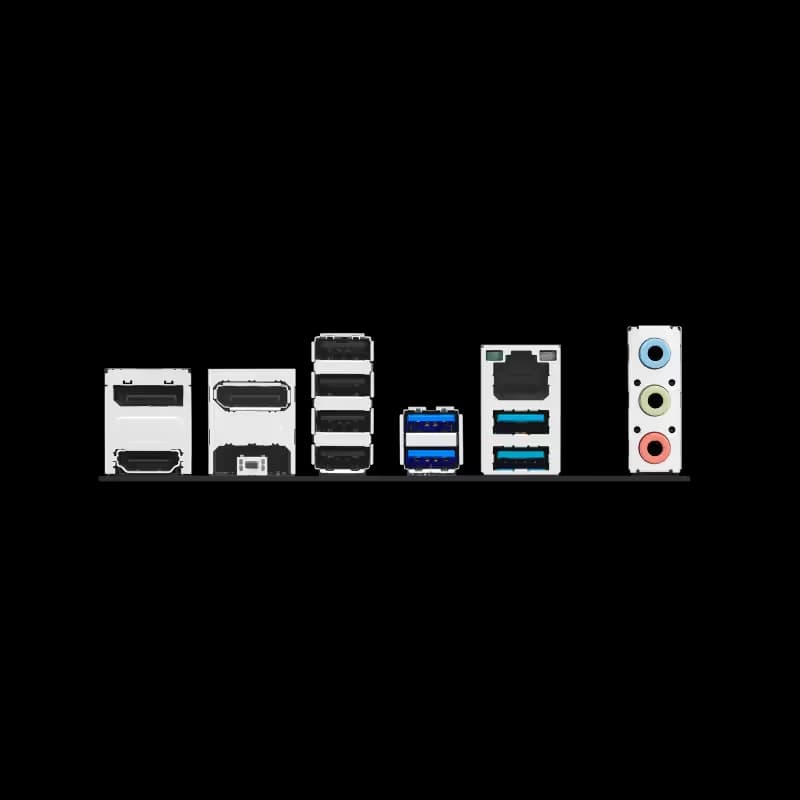

Back Panel Ports
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
PRIME
Variant
B650EM-A-CSM
Release Year
2022
Manufacturer Color
Black/Silver
UPC
None
EAN
None
Part Numbers
ASUS PRIME B650EM-A-CSM
BuildCores ID
8iuipb65y
Motherboard
ASUS PRIME B650EM-A-CSM
SocketAM5
Form FactorMicro ATX
ChipsetAMD B650E
