General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD B550

Weight

Unknown

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

Lighting

ARGB

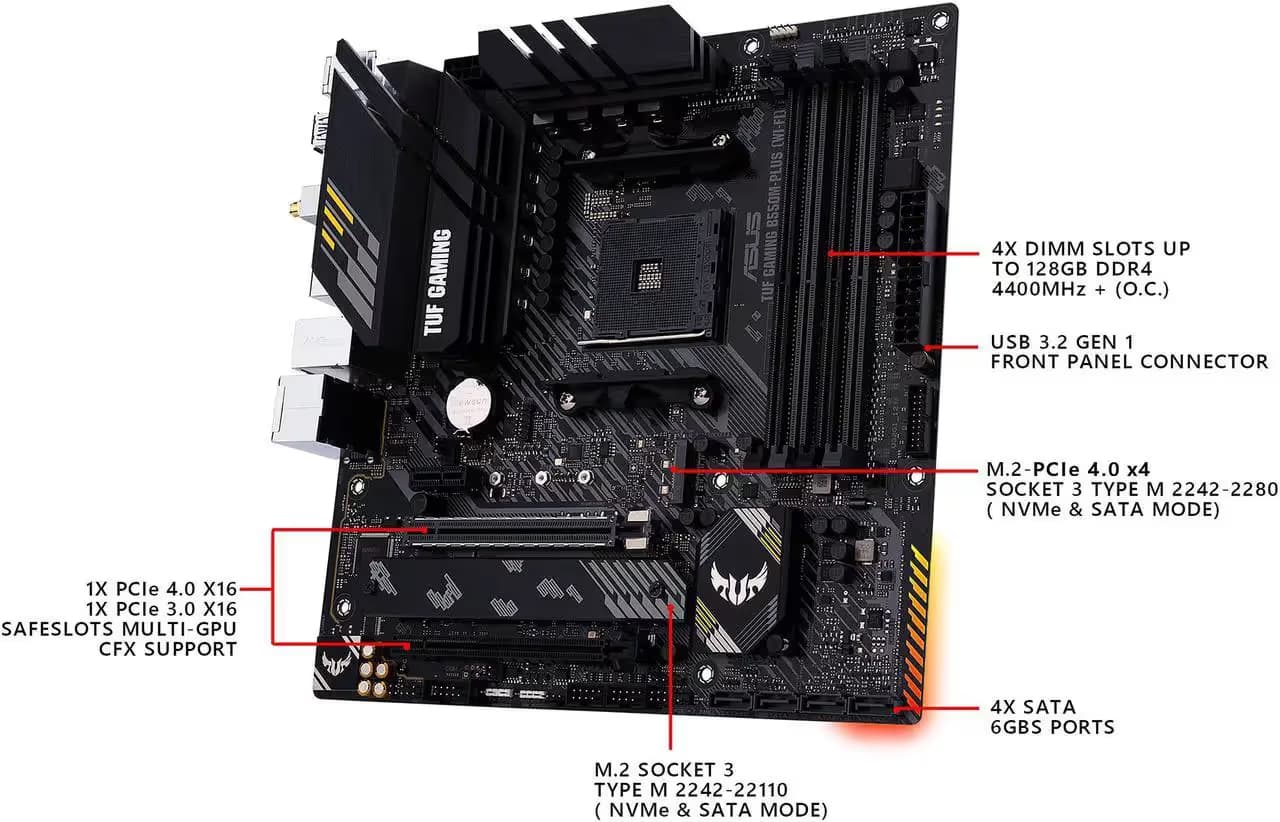

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 / SATA M 2242/2260/2280/22110 PCIe 3.0 x4 / SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125B 2.5 Gb/s

WiFi

None

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek S1200A

Audio Channels

7.1

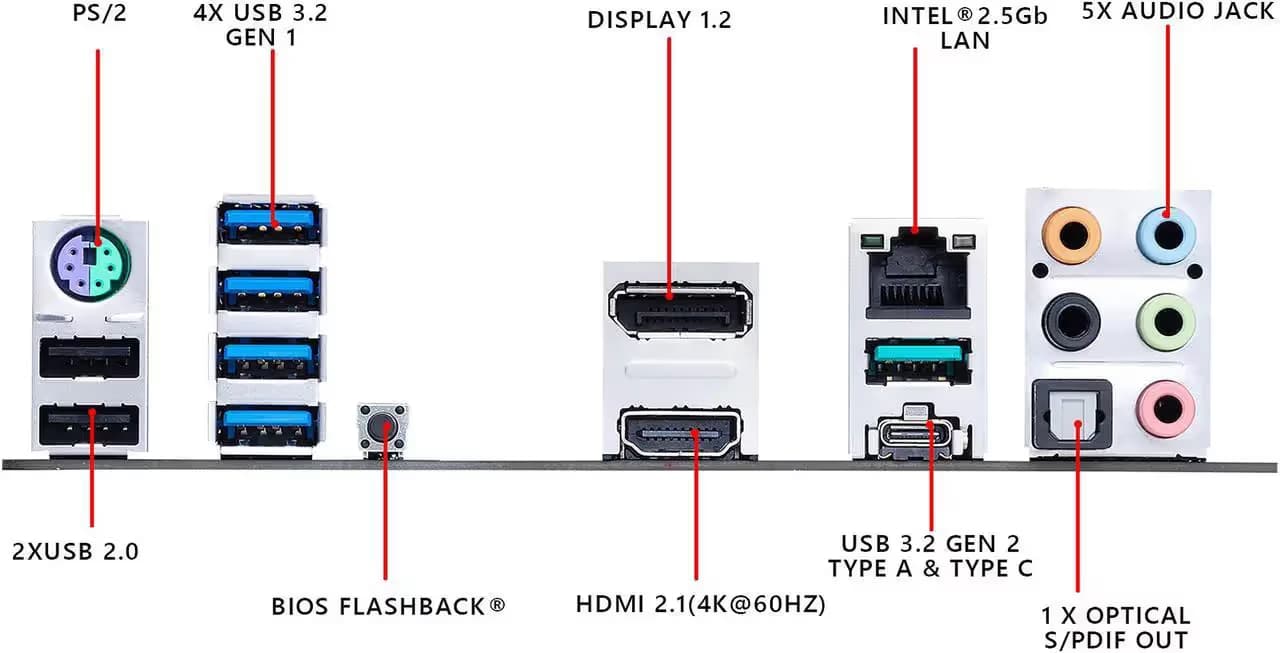

Back Panel Ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek RTL8125B 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x PS/2 Keyboard/Mouse combo port

Display Outputs

Unknown

Product Information

Manufacturer

ASUS

Series

TUF GAMING

Variant

B550M-PLUS

Release Year

2020

Manufacturer Color

Black

UPC

192876623541 192876750155

EAN

4718017623544 0192876623541 0192876750155

Part Numbers

tuf-gaming-b550m-plus 90MB14A0-M0EAY0 TUF GAMING B550M-PLU

BuildCores ID

5slkipqrf

See an issue?Report an issue on OpenDB

Motherboard

ASUS TUF GAMING B550M-PLUS

Name: ASUS TUF GAMING B550M-PLUS
Brand: ASUS
SKU: 5slkipqrf

SocketAM4

Form FactorMicro ATX

ChipsetAMD B550

Best Price

$197.32

via

	—	$197.32

	—	$199.99

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Backordered	$197.32 via MemoryC
	—	—	In stock	$199.99 via Amazon

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Backordered	$197.32 via MemoryC
	—	—	In stock	$199.99 via Amazon
