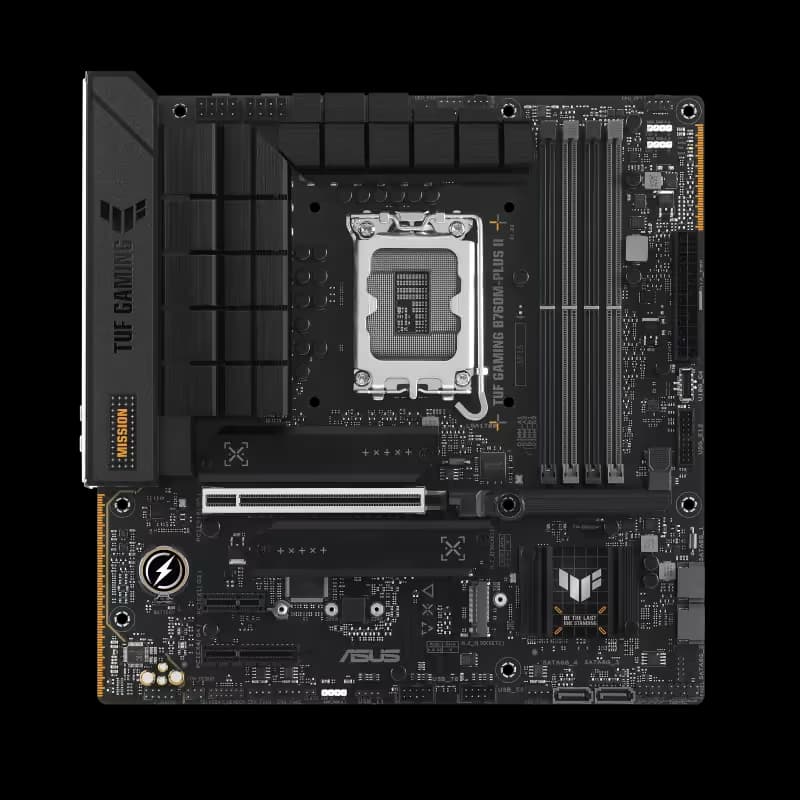

ASUS TUF GAMING B760M-PLUS II main image
General Specifications
Socket
LGA 1700
Form Factor
Micro ATX
Chipset
Intel B760
Weight
Unknown
Max Memory
192 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK GREY ORANGE
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5Gb Ethernet 2.5 Gb/s
WiFi
Unknown
USB 2.0
3
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin 8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

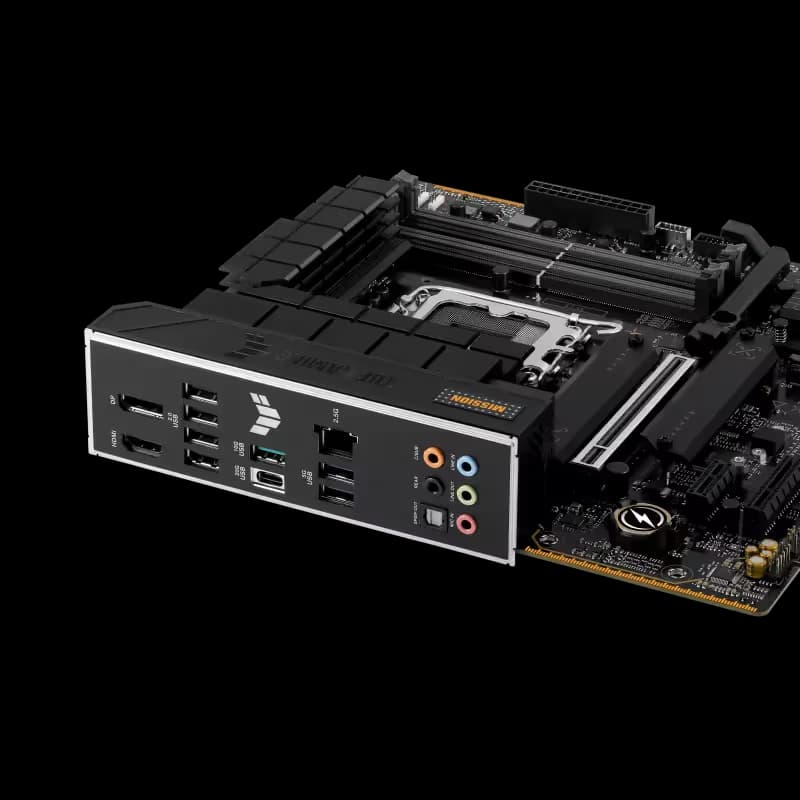

Back Panel Ports
1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Display Outputs
Unknown
Product Information
Manufacturer
ASUS
Series
TUF GAMING
Variant
B760M-PLUS II
Release Year
2024
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
tuf-gaming-b760m-plus-ii
BuildCores ID
527f2v56e
