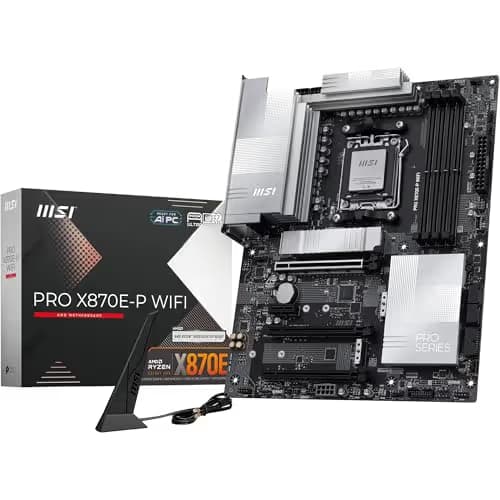

MSI X870E PRO-P WIFI DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870E

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

Lighting

None

PCIe Slots

1 x PCIe 5.0 x16 3 x PCIe 4.0 x4 1 x PCIe 3.0 x2

M.2 Slots

M 2260/2280 PCIe 5.0 x4 M 2260/2280 PCIe 4.0 x4 M 2280/ 22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126VB 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

1x Clear CMOS button 1x Flash BIOS button 1x HDMI port 1x USB 5Gbps Type-A port 1x USB 40Gbps Type-C port 2x USB 10Gbps Type-A ports 4x USB 2.0 ports 1x 5G LAN (RJ45) jack 1x USB 5Gbps Type-A port 1x USB 20Gbps Type-C port 2x Wi-Fi Antenna connectors 3x audio jacks

Display Outputs

Connector: hdmi Count: 1 Version Label: 2.1 Video Signal: hdmi Transport: native Graphics Route: discrete Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 60 Claim: maximum_at_resolution Connector: usb_c Count: 1 Version Label: USB4 Video Signal: displayport Transport: dp_alt_mode Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 120 Claim: maximum_at_resolution

Product Information

Manufacturer

MSI

Series

PRO

Variant

X870E-P WIFI

Release Year

2025

Manufacturer Color

Black

UPC

824142425565

EAN

0824142425565 4711377347600

Part Numbers

PRO X870E-P WIFI 911-7E70-002

BuildCores ID

3mx8mrsxi

See an issue?Report an issue on OpenDB

Motherboard

Modular

MSI X870E PRO-P WIFI DDR5 ATX

Name: MSI X870E PRO-P WIFI DDR5 ATX
Brand: MSI
SKU: 3mx8mrsxi

SocketAM5

Form FactorATX

ChipsetAMD X870E

Best Price

$219.00

via

	FREE s/h	$219.00

	—	$229.00

	—	$299.99

	FREE s/h	$299.99

	FREE s/h	$299.99

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$219.00 via Walmart
	—	—	In stock	$229.00 via Amazon
	—	—	In stock	$299.99 via Best Buy
	FREE s/h	—	In stock	$299.99 via B&H Photo
	FREE s/h	—	In stock	$299.99 via MSI

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$219.00 via Walmart
	—	—	In stock	$229.00 via Amazon
	—	—	In stock	$299.99 via Best Buy
	FREE s/h	—	In stock	$299.99 via B&H Photo
	FREE s/h	—	In stock	$299.99 via MSI

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Compare this in 3D

Compare with 5000+ 3D products in our database.

Compare

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870E

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

Lighting

None

PCIe Slots

1 x PCIe 5.0 x16 3 x PCIe 4.0 x4 1 x PCIe 3.0 x2

M.2 Slots

M 2260/2280 PCIe 5.0 x4 M 2260/2280 PCIe 4.0 x4 M 2280/ 22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126VB 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

Display Outputs

Product Information

Manufacturer

MSI

Series

PRO

Variant

X870E-P WIFI

Release Year

2025

Manufacturer Color

Black

UPC

824142425565

EAN

0824142425565 4711377347600

Part Numbers

PRO X870E-P WIFI 911-7E70-002

BuildCores ID

3mx8mrsxi

See an issue?Report an issue on OpenDB
