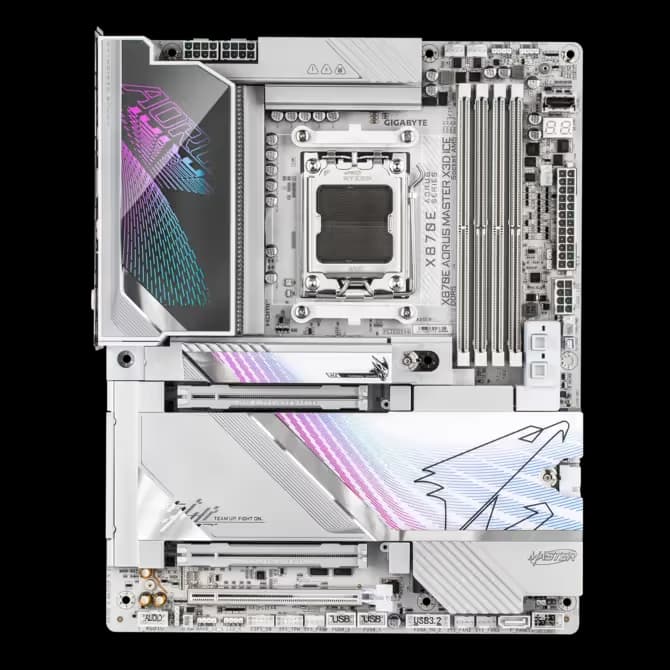

Gigabyte X870E AORUS MASTER X3D ICE AM5 DDR5 ATX image
Gigabyte X870E AORUS MASTER X3D ICE AM5 DDR5 ATX image
Gigabyte X870E AORUS MASTER X3D ICE AM5 DDR5 ATX image

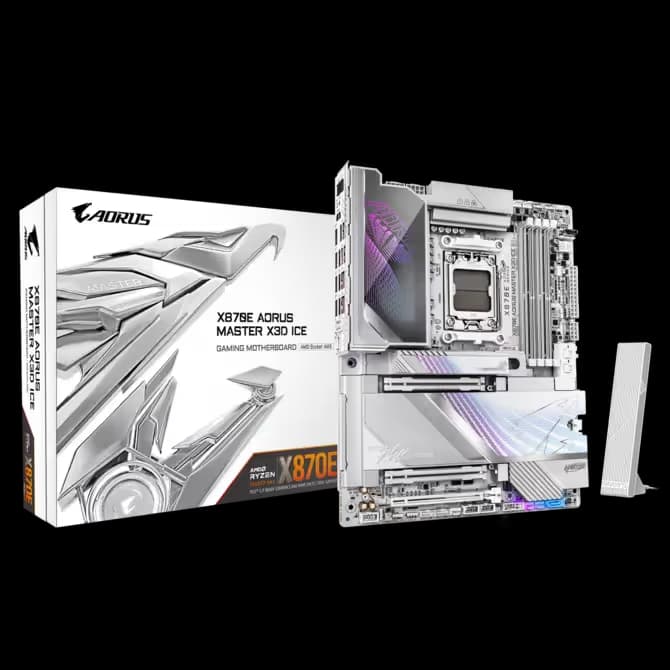

Gigabyte X870E AORUS MASTER X3D ICE AM5 DDR5 ATX main image
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X870E
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
WHITE
Lighting
ARGB
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 1 x PCIe 4.0 x4
M.2 Slots
M 2280/2580 PCIe 5.0 x4 M 2280 PCIe 5.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x2
SATA 6Gb/s
2
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 5 Gb/s Realtek 10 Gb/s
WiFi
Wi-Fi 7
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
4
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
2
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin 8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220
Audio Channels
7.1

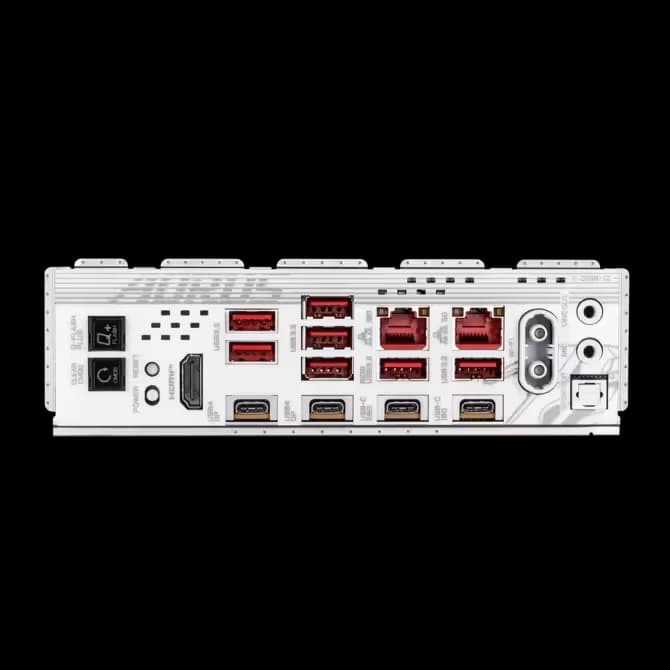

Back Panel Ports
1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset button 1 x power button 1 x HDMI port 2 x USB4 USB Type-C ports 1 x USB Type-C port with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Display Outputs
Unknown
Product Information
Manufacturer
Gigabyte
Series
AORUS
Variant
X870E MASTER X3D ICE
Release Year
2025
Manufacturer Color
White
UPC
889523053089
EAN
0889523053089 4719331876517
Part Numbers
X870E AORUS MASTER X3D ICE X870E A MASTER X3D ICE
BuildCores ID
3j4br2xmq
See an issue?Report an issue on OpenDB
