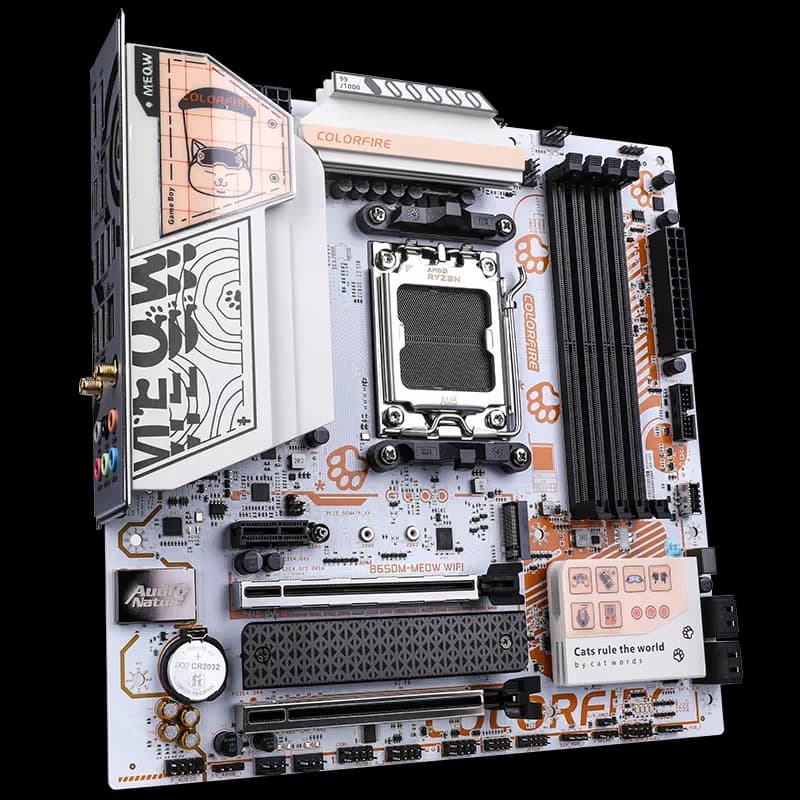

COLORFUL COLORFIRE B650M-MEOW WIFI ORANGE AM5 DDR5 M-ATX image
COLORFUL COLORFIRE B650M-MEOW WIFI ORANGE AM5 DDR5 M-ATX image

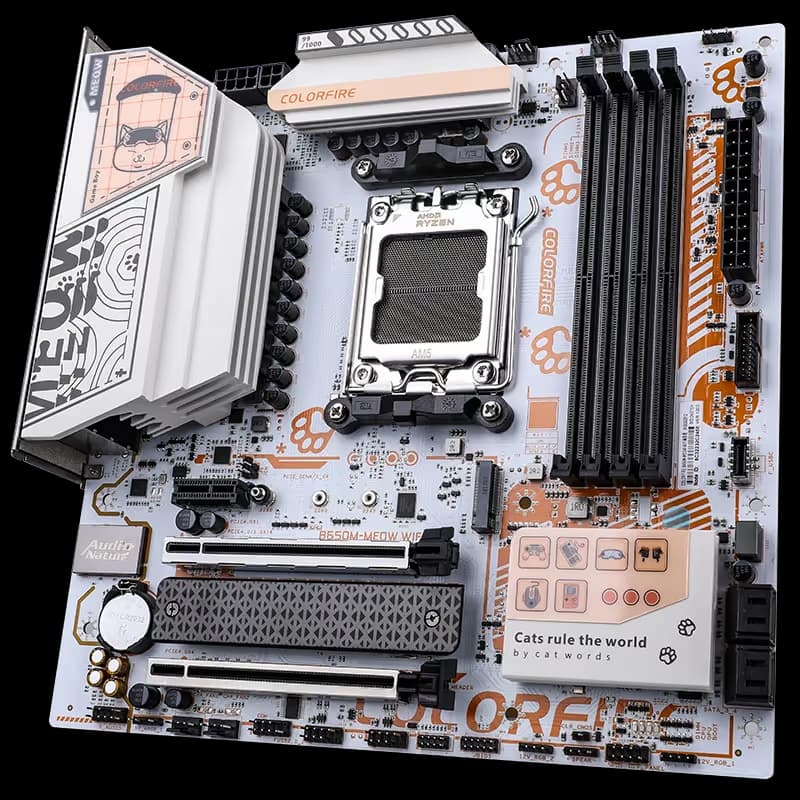

COLORFUL COLORFIRE B650M-MEOW WIFI ORANGE AM5 DDR5 M-ATX image
COLORFUL COLORFIRE B650M-MEOW WIFI ORANGE AM5 DDR5 M-ATX image

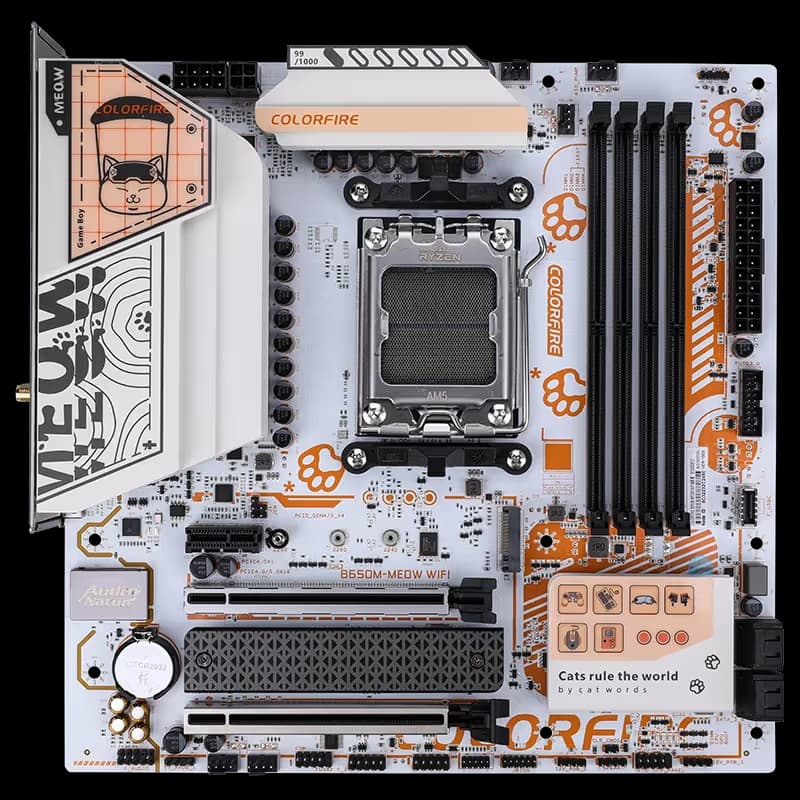

COLORFUL COLORFIRE B650M-MEOW WIFI ORANGE AM5 DDR5 M-ATX main image
General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650
Weight
Unknown
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY ORANGE WHITE
Lighting
RGB ARGB
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 5.0/4.0 x4 M 2242/2260/2280 PCIe 5.0/4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
RTL8125BG 2.5 Gb/s
WiFi
Wifi 6
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
0
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin 4-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

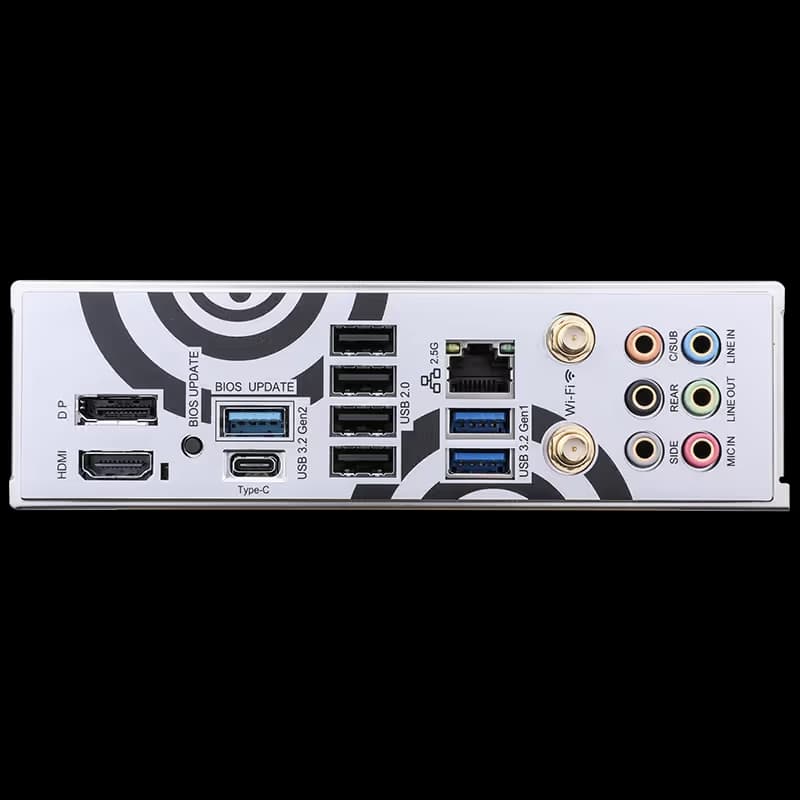

Back Panel Ports
1 x HDMI 1.4 port 1 x DisplayPort 1.2 1 x USB 3.2 Gen 2 Type-C port 1 x USB 3.2 Gen 2 Type-A port 2 x USB 3.2 Gen 1 Type-A ports 4 x USB 2.0 ports 1 x 2.5G LAN (RJ45) port 2 x Wi-Fi Antenna connectors 6 x Audio jacks 1 x BIOS Update Button
Display Outputs
Unknown
Product Information
Manufacturer
Colorful
Series
COLORFIRE
Variant
B650M-MEOW WIFI ORANGE
Release Year
2024
Manufacturer Color
Silver / Orange
UPC
None
EAN
None
Part Numbers
COLORFIRE B650M-MEOW WIFI
BuildCores ID
2dox5o5gw
