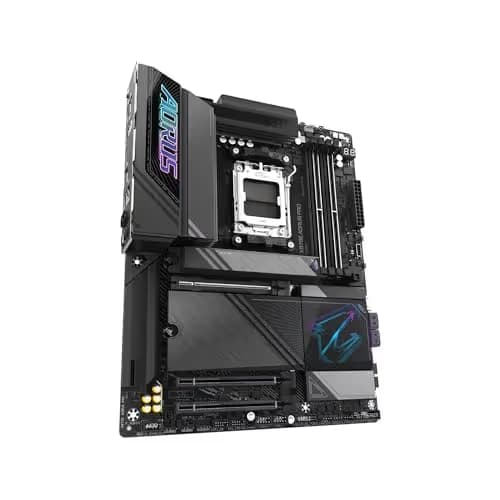

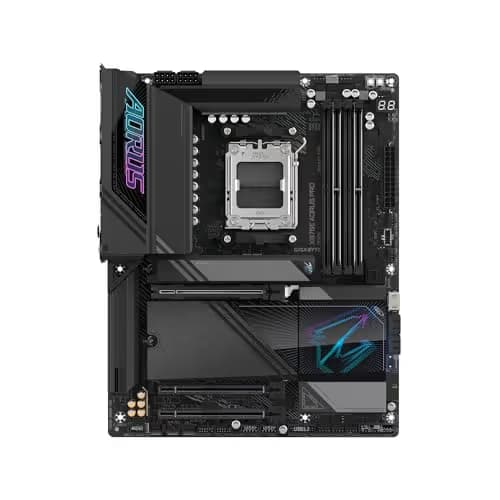

GIGABYTE X870E AORUS PRO AM5 DDR5 ATX image

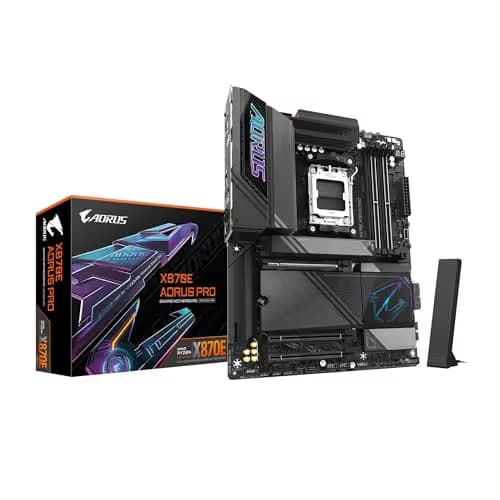

GIGABYTE X870E AORUS PRO AM5 DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X870E

Weight

Unknown

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

Lighting

ARGB

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x4

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 22110/2280 PCIe 5.0 x4 M 22110/2280 PCIe 5.0 x4 M 22110/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 7

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

Back Panel Ports

1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks

Display Outputs

Unknown

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

X870E PRO

Release Year

2024

Manufacturer Color

Black / Gray

UPC

889523045251

EAN

0889523045251 4719331864866

Part Numbers

X870E AORUS PRO 9MX87EPRO-00-10

BuildCores ID

0sjp37a2u
