General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD A520
Weight
Unknown
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
M.2 Slots
M 2280 PCIe 3.0x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
0
CPU Optional Fan Headers
0
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

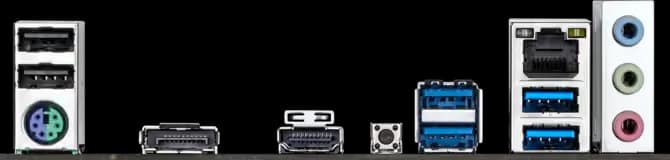

Back Panel Ports
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
Gigabyte
Series
Ultra Durable
Variant
A520M H ARGB
Release Year
2025
Manufacturer Color
Black/Silver
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
0f99ehnfq
